BPMN 2.0 Choreography Toolbox Pages

To create BPMN elements and relationships on Choreography diagrams in either BPMN 2.0 or BPEL formats, you can use the BPMN 2.0 Choreography pages of the Diagram Toolbox.

Access     Diagram | Diagram Toolbox: More tools | BPMN 2.0 | BPMN 2.0 Choreography

Element and Connector Descriptions

Page

Item

Use to

BPMN 2.0  Choreography

Choreography Model

Extend a composite Activity that defines a Choreography process.



Choreography

Extend an Activity element to represent a process unit of information exchange between Participants.

Enterprise Architect currently supports two to four participant bands within one Choreography Activity/Task.



Start Event

Define the initiating event in a process.



Intermediate Event

Define an intermediate event in a process.



End Event

Define the terminating event in a process.



Gateway

Define a decision point in a business process.

If a condition is true then processing continues one way; if false, then another.



Message

Represent the contents of a communication between two Participants.



Pool

Extend a Partition element to logically organize an Activity.



Text Annotation

Create a comment.



BPMN 2.0  Choreography Connectors

Sequence Flow

Define the order of activity in a Choreography.



Association

Link the information and Artifacts with BPMN graphic elements.



Message Flow

Extend a Control Flow relationship to define the flow of communications in the process.

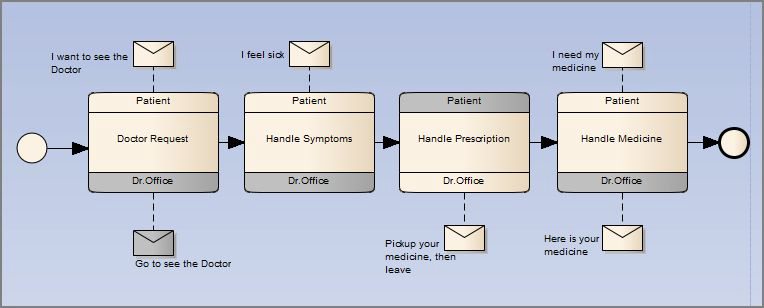

Example BPMN 2.0 Choreography Diagram

ChoreographyExample

Notes

The appearance and specification of some elements and connectors are defined by Tagged Values
