Select Property Dialog

The Select Property dialog is a specific instance of the Select <Item> dialog; it is used to select Ports, Parts, Attributes and  Association Ends as redefined or subsetted properties, from a hierarchical list of Classes and their contained properties in the model. For example, consider the section of the model below:

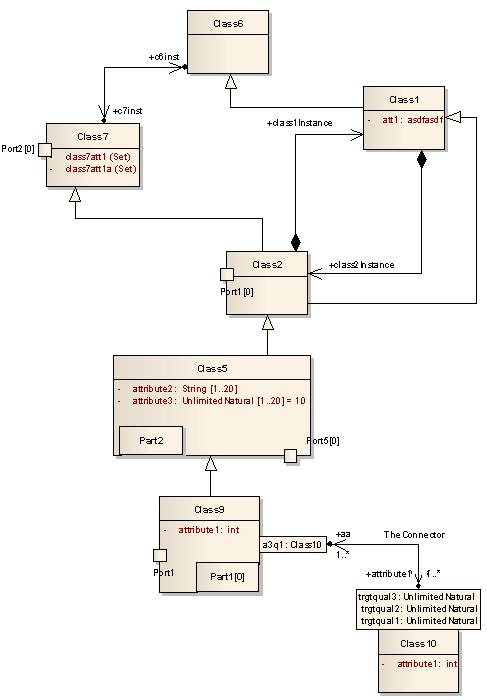

Example

Select-Hierarchy

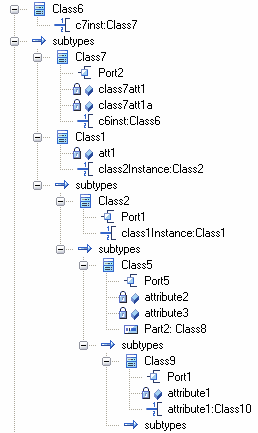

This would be represented in the dialog as follows:

SelectProperty



Locate and click on the required object to select it, then click on the OK button (to select several objects at once, press and hold ( Ctrl ) while you click on each object).

Notes

AssociationEnds should be owned by the Class to be listed in the dialog
