Getting Started

MOF diagrams are Class diagrams that are contained in packages with a metamodel stereotype.

How to

To create a MOF diagram

Step

Action

See also

1

Create a package to contain your MOF elements.





2

Double-click on the package name to display the Properties dialog.





3

In the Stereotype field type the value metamodel.





4

Click on the OK button.





5

Right-click on the package in the Project Browser and select the Add | Add Diagram context menu option.

Create a Class diagram (the default diagram).





6

Give your MOF Class diagram an appropriate name.





7

In the Toolbox, select the More tools | Metamodel menu option and add the required Metamodel elements to the diagram.



Metamodel Toolbox

Example

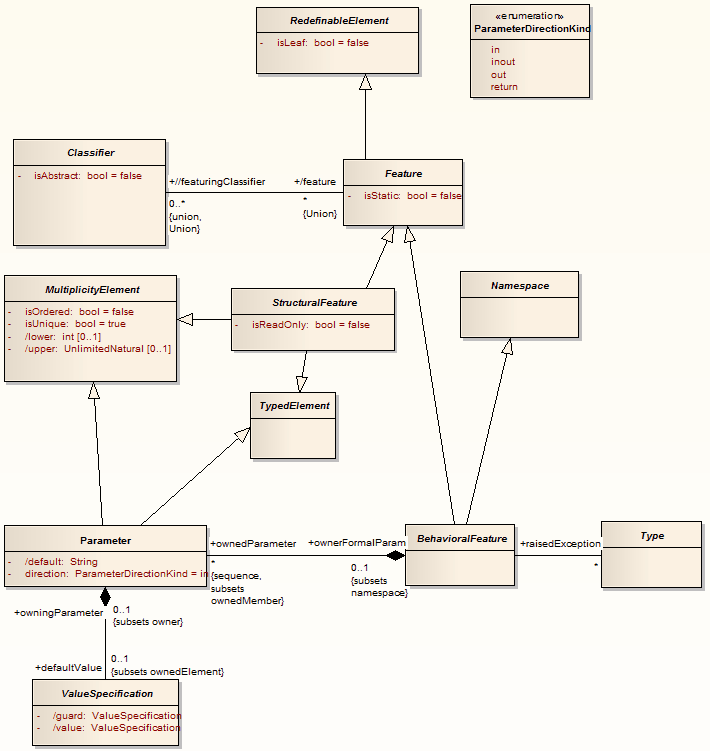

The following is an example of a MOF diagram. A MOF diagram can typically contain Package, Class, Enumeration and Primitive elements, and Generalization, Association, Compose and Aggregate relationships.

MOF_UML2
