Setting Code Breakpoints

Normal Breakpoints are typically set on a line of source code. When the Debugger hits the indicated line during normal execution, the Debugger halts execution and displays the local variables, call stack, threads and other run-time information.

How to

To set a breakpoint on a line of code

Step

Action

See also

1

Open the source code to debug in the integrated source code editor.





2

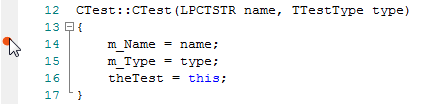

Find the appropriate code line and click in the left margin column - a solid red circle in the margin indicates that a breakpoint has been set at that position.

adding_breakpoint

If the code is currently halted at a breakpoint, that point is indicated by a blue arrow next to the marker.

AtBreakpoint

Alternatively, you can set the Breakpoint marker (or other marker) by right-clicking on the left margin on the required line, to display the breakpoint/marker context menu; select the appropriate marker type.



























Set Record Markers

Learning Center topics

(Alt+F1) | Build and Debug | Debug | Add Breakpoint
