Sequence Elements

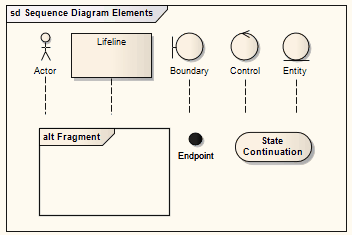

The example below shows some possible elements of Sequence diagrams and their stereotyped display.

SequenceDiagramElements



Element

Description

See also

Actor

An instance of an actor at runtime; this can be depicted either as the human figure or in rectangle notation.



Actor

Lifeline

An Object element with the stereotype Lifeline.



Lifeline

Boundary

Represents a user interface screen or input/output device.



Boundary

Entity

A persistent element - typically implemented as a database table or element.



Control

Control

The active component that controls what work gets done, when and how.



Entity
