Set Record Markers

Markers are set in the source code editor. Like breakpoints, they are placed on a line of code; when that line of code executes, the Execution Analyzer performs the code execution recording action appropriate to the marker.

Access    Click on the Class containing code: F12

How to

To set a recording marker

Step

Action

See also

1

Press F12 to open the source code to debug, in the integrated source code editor.



Editing Source Code

2

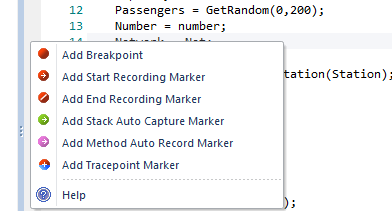

Find the appropriate code line and right click in the left (Breakpoint) margin to bring up the breakpoint/marker context menu; select the required marker type:


VEAMarkerselection



Marker Types

3

If a Start Recording Marker has been set, you must also set an End Recording Marker.
