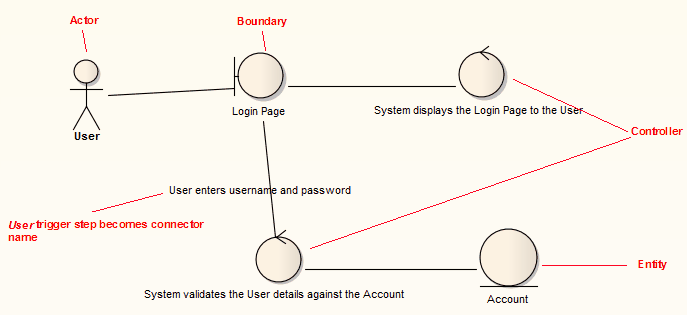

Generated Robustness Diagram
A Collaboration is created as a child of the selected element, to act as a container for the Robustness diagram.
|•||All the elements involved in the scenario should be identified in the Context Reference tab; that is, relationships must already exist between the scenario parent element and the other elements named in the scenario|
|•||Any values in the Uses, Results and State columns are ignored and not represented in the diagram|
|•||Each UI element in a step becomes a Boundary element; a Dependency relationship is created from this Boundary element to the UI element (this connector is not shown on the diagram)|
|•||Each Actor referenced in a step is dropped into the Robustness diagram as a simple link|
|•||Each Class referenced in a step is dropped into the Robustness diagram as a simple link, and is given the stereotype entity|
|•||Each step with a System trigger becomes a Controller; alternate/exception path Controllers are displayed with a red background color|
|•||Each step with a User trigger becomes the name of the Association between Controllers|
