SysML Activity Toolbox

When you are constructing SysML models, you can populate the Activity diagrams using the icons on the SysML Activity pages of the Diagram Toolbox.

The Block that owns the Activity diagram is automatically represented by a diagram frame enclosing the Activity diagram elements. You can:

Hide the frame by right-clicking on the diagram and selecting the Hide Diagram Frame context menu option
Make the frame selectable to move or resize it, by right-clicking on it and selecting the Selectable context menu option
Create Ports and Parts on the frame and create connectors between them

Access     Diagram | Diagram Toolbox: More Tools | SysML 1.3 | SysML 1.3 Activity

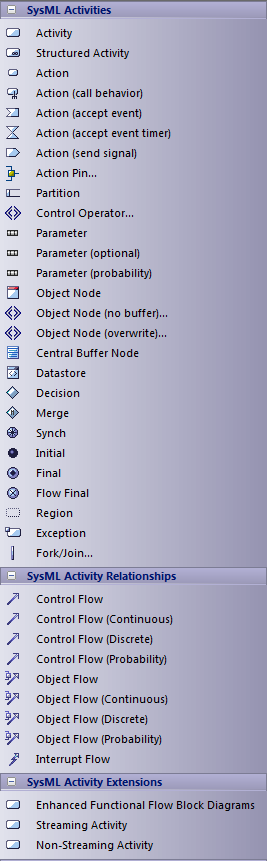

SysMLActTB


SysML Activity Objects

Page

Item

Action

SysML Activities

Activity

Defines a SysML Block of executable behavior as a UML Activity.



Structured Activity

Defines a SysML Block of executable behavior as a UML Structured Activity.



Action

Declares a unit of execution in an Activity as a UML Action.



Action (call behavior)

Declares a unit of execution that calls another behavior.



Action (accept event)

Declares a unit of execution that accepts an event raised by the system.



Action (accept event timer)

Declares a unit of execution that accepts an event raised by a time epoch.



Action (send signal)

Declares a unit of execution that sends a signal as an event.



Action Pin

Defines the data values passed out of and into an Action. (See also: Action Pin.)



Partition

Creates an Activity Partition to group execution elements according to the node responsible for their execution.



Control Operator

Controls the execution of an Activity.



Parameter

Provides access to input and output objects within the Activity.



Parameter (optional)

Defines a parameter whose contents are optional in the Activity's execution.



Parameter (probability)

Tags a parameter with the probability of the parameter being in use in the Activity.



Object Node

Declares a variable in the Activity, typed by a ValueType, DataType or Block.



Object Node (no buffer)

Declares an ObjectNode in an Activity that discards unconsumed tokens.



Object Node (overwrite)

Declares an ObjectNode in an Activity that overwrites tokens.



Central Buffer Node

Declares an ObjectNode that stores tokens for consumption throughout the Activity.



Datastore

Defines permanently stored data. (See also: Datastore.)



Decision

Creates a branch of control in an Activity, based on a decision.



Merge

Merges two or more Activity control branches.



Synch

Establishes a rendezvous point for two or more Activity flows, in order to synchronize their execution in the Activity.



Initial

Declares the start of an Activity's execution.



Final

Declares the end of an Activity's execution, and the termination of the Activity.



Flow Final

Declares the end of an Activity's execution path without terminating the Activity.



Region

Groups a subset of an Activity into a common execution context.



Exception

Declares a node of execution that happens outside the normal flow of execution of an Activity.



Fork/Join

Simultaneously branches / joins a set of Control or Object Flows.



SysML Activity  Relationships

Control Flow

Establishes a flow of logic between two Activity nodes.



Control Flow (Continuous)

Declares a continuous control flow.



Control Flow (Discrete)

Declares a discrete control flow.



Control Flow (Probability)

Tags a control flow with a probability of the likelihood of the flow's traversal.



Object Flow

Establishes a flow of objects (data) between two Activity nodes.



Object Flow (Continuous)

Declares a continuous object flow.



Object Flow (Discrete)

Declares a discrete object flow.



Object Flow (Probability)

Tags an object flow with the probability of the flow's traversal.



Interrupt Flow

Declares a control flow that interrupts flow within a Region.



SysML Activity  Extensions

Enhanced Functional Flow Block Diagrams

Declares an Activity used to contain an Enhanced Functional Flow Block Diagram (EFFBD).



Streaming Activity

Declares an Activity where the flow of tokens passes through its parameters continuously throughout the Activity's execution.



Non-Streaming Activity

Declares an Activity where the flow of tokens passes through its parameters at the start of the Activity's execution.
