Set up a PostgreSQL ODBC Driver

After you have created a repository on your PostgreSQL database, you set up the PostgreSQL ODBC driver so that you can connect to a project on that repository from Enterprise Architect.



·PostgreSQL DBMS and repository
·PostgreSQL ODBC driver software version or above (note that versions 8.3.4 and 8.4.1 of the PostgreSQL ODBC Driver are not supported)

Set up the ODBC driver




If you are using a 32-bit operating system:

·Select the WindowsTM Control Panel | Administrative Tools | Data Sources (ODBC) option

If you are using a 64-bit operating system:

·Enterprise Architect requires 32-bit ODBC drivers to connect to a repository through ODBC; to set up the ODBC configuration on 64-bit clients, run the 32-bit ODBC Data Source Administrator from C:\Windows\SysWOW64\odbcad32.exe
·You can quickly load the correct 32-bit ODBC Data Source Administrator by selecting Tools |  ODBC Data Sources in the Enterprise Architect menu bar

The ODBC Data Source Administrator window displays.



Click on the Add button.

The Create New Data Source dialog displays, enabling you to add a new DSN.



Select PostgreSQL UNICODE from the list.



Click on the Finish button.

The Postgre SQL Connector/ODBC dialog displays.



Enter the following configuration details:

·A data source name for the connection
·The actual name of the database
·The host address of the DBMS server
·User name
·A description (optional)
·The password

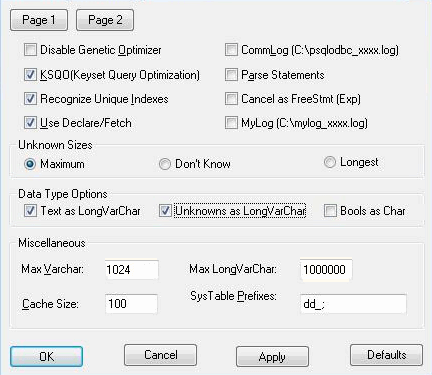

To set the advanced options, click on the Datasource button and set the options on Page 1 and Page 2 as shown below:








If you are using PostgreSQL version 8+, on Page 2  select:

·The Disallow Premature checkbox
·In the Protocol panel, the 7.4+ radio button



Click on the OK button to complete the configuration.



Your PostgreSQL driver is now available to connect to the repository from Enterprise Architect.
