Apache Tomcat Server

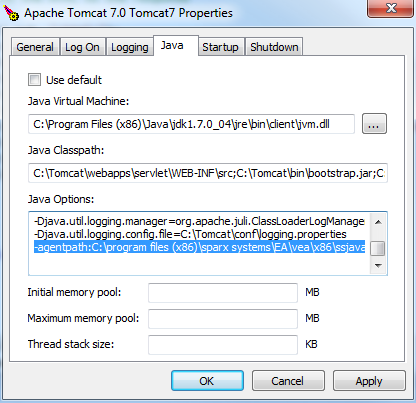

The Apache Tomcat Server can be configured for debugging using the Java debugger in Enterprise Architect. This example shows the configuration dialog for Apache Tomcat 7.0 on a PC running Windows 7.

tomcatconfig



These three points are important:

·The Java Virtual Machine specifies the runtime from an installation of the Java JDK

·The source path to any servlet to be debugged is added to Java Classpath; in this case we add the path to the Tomcat servlet:

c:\tomcat\webapps\servlet\WEB-INF\src

·The Java Options include the path to the Sparx Systems debugging agent:

-agentpath:c:\program files (x86)\sparx systems\vea\x86\ssjavaprofiler32
