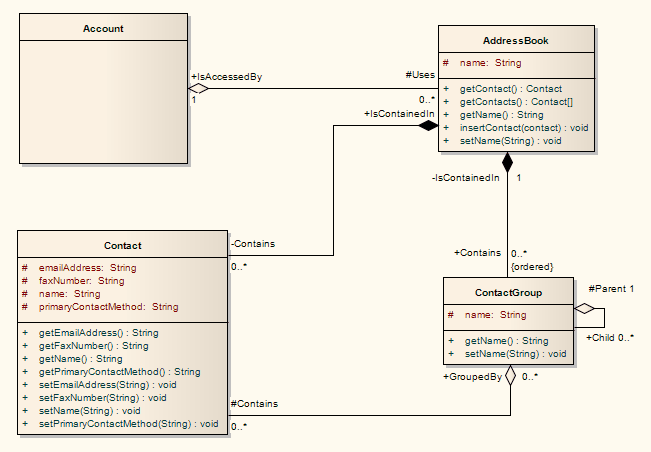

Example Class Diagram
In this example Class diagram, there are two forms of the Aggregation relationship:
|·||The pale form indicates that the Class Account uses AddressBook, but does not necessarily contain AddressBook|
|·||The dark Composite Aggregation form indicates ownership or containment by the target Classes (at the diamond end) of the source Classes|
