Hyperlinks Between Diagrams

Create a hyperlink between diagrams

Step

Action

1

Open the diagram in which to display the hyperlink to another diagram.

From the Project Browser select the diagram you want to create a hyperlink to:

2

Drag the diagram on to the current diagram.

The 'Select Type' dialog displays.

3

Select the 'Hyperlink' option and click on the OK button.

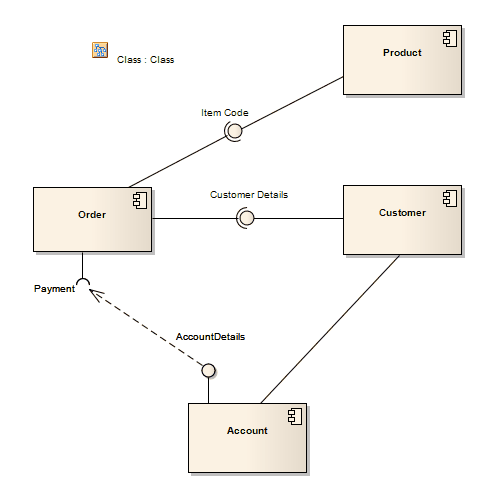

The final hyperlinked diagram should resemble this diagram, where the 'Class' diagram is the diagram to which the 'Product Order' diagram hyperlinks (notice that the hyperlink icon is different).

Example

Notes

  • If the hyperlink appears as a Sub Activity, select the 'Tools | Options | Diagram | Behavior' menu option and deselect the 'Use Automatic SubActivities' checkbox
