N-Ary Association


An n-Ary A ssociation element is used to model complex relationships between three or more elements, typically in a Class diagram. It is not a commonly-employed device, but can be used to good effect where there is a dependant relationship between several elements. It is generally used with the Association connector, but the relationships can include other types of connector.

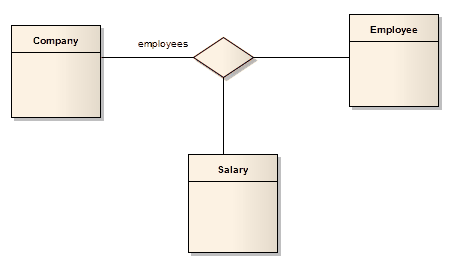

In the example above there is a relationship between a Company, an Employee and a Salary.
