BPMN 1.0 and 1.1 Toolbox Pages

You can create graphical (Core) and non-graphical (Types) BPMN elements and relationships on business process diagrams in BPMN 1.0, BPMN 1.1 and BPEL formats, using the BPMN 1.0 and BPMN 1.1 pages of the Diagram Toolbox.

Access

Use any of the methods outlined here to display the Diagram Toolbox.

On the Diagram Toolbox, click on the More tools button and select either 'BPMN 1.0' or 'BPMN 1.1'.

Ribbon

Design > Diagram > Toolbox :  More Tools > BPMN 1.1

Menu

Diagram | Toolbox :  More Tools > BPMN 1.1

Keyboard Shortcuts

Alt + 5 :  More Tools > BPMN 1.1

Other

Click the icon on the Diagram caption bar to display the Diagram Toolbox, then

More Tools > BPMN 1.1

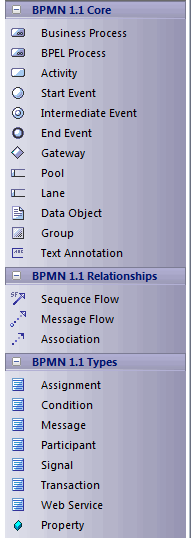

Toolbox

BPMN 1.1 Core Toolbox Page

Item

Action

See also

Business Process

Extend a composite Activity that defines a business process.

BPEL Process

Define the behavior of an executable or abstract business process.

Activity

Represents work that is performed within a Business Process. An Activity can be modeled as a:

  • Sub-Process - a compound Activity that is defined as a flow of other BPMN 1.1 elements or
  • Task - an atomic Activity that cannot be broken down into a smaller unit

As a sub-process, the Activity can be made a composite element that links to a child diagram containing the flow of other BPMN elements.

Composite Elements

Start Event

Define the initiating event in a process.

Intermediate Event

Define an intermediate event in a process.

End Event

Define the terminating event in a process.

Gateway

Define a decision point in a business process.

If a condition is true, then processing continues one way; if not, then another.

Pool

Extend a Partition element to logically organize an Activity.

Lane

Extend a Partition element to subdivide a Pool.

Data Object

Extend an Artifact element to define a physical piece of information used or produced by a system.

Group

Extend a Boundary element to group other elements.

Text Annotation

Create a comment.

BPMN 1.1 Relationship Toolbox Page

Item

Action

See also

Sequence Flow

Extend a Control Flow relationship to define the flow of activity.

Message Flow

Extend a Control Flow relationship to define the flow of communications in the process.

Association

Associate information and artifacts with flow objects.

BPMN 1.1 Types Toolbox Page

Item

Action

See also

Assignment

Define the properties (Tagged Values) of the Core BPMN 1.1 elements such as Activities, Events and Gates.

Change BPMN Element Appearance

Condition

Define the properties (Tagged Values) of the Core BPMN 1.1 elements such as Activities, Events and Gates.

Change BPMN Element Appearance

Message

Define the properties (Tagged Values) of the Core BPMN 1.1 elements such as Activities, Events and Gates.

Change BPMN Element Appearance

Participant

Define the properties (Tagged Values) of the Core BPMN 1.1 elements such as Activities, Events and Gates.

Change BPMN Element Appearance

Signal

Define the properties (Tagged Values) of the Core BPMN 1.1 elements such as Activities, Events and Gates.

Change BPMN Element Appearance

Rule

Define the properties (Tagged Values) of the Core BPMN 1.1 elements such as Activities, Events and Gates.

Change BPMN Element Appearance

Transaction

Define the properties (Tagged Values) of the Core BPMN 1.1 elements such as Activities, Events and Gates.

Change BPMN Element Appearance

Web Service

Define the properties (Tagged Values) of the Core BPMN 1.1 elements such as Activities, Events and Gates.

Change BPMN Element Appearance

Property

Define the properties (Tagged Values) of the Core BPMN 1.1 elements such as Activities, Events and Gates.

Change BPMN Element Appearance
