Import Requirements from DOORS

Using the Sparx Systems MDG Link for DOORS, you can transfer all the objects in a linked IBM® Rational® DOORS® module into the selected Enterprise Architect Package, as Requirement elements.

As part of this process you can create an import profile to define what the import should operate on. An import profile is a template in which you specify the DOORS object properties to be imported into mapped Enterprise Architect element properties. The profile can be reused when you export and synchronize the Enterprise Architect Package into DOORS again.

Access

Ribbon

Click on target Package, then:

Extend > DOORS > Import from Doors

Context Menu

Project Browser | Right-click on target Package | Extensions | Doors Extension | Import from Doors

Import from Doors Dialog

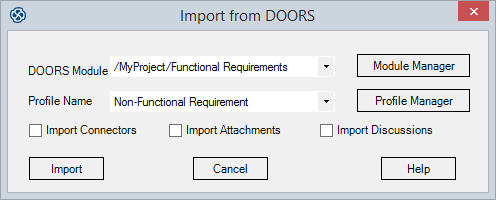

The 'Import from Doors' dialog helps you to specify which module you are importing from, which import profile you are using, and whether to import connectors, attachments and discussions.

Import Options

Field/Button

Action

See also

Doors Module

Click on the drop-down arrow and select from the list of DOORS modules that are linked to this project.

Module Manager

If the module you want is not listed in the 'Doors Module' field, click on this button to display the 'Modules Manager' dialog and locate and link to the module you require.

Create a Link to a DOORS Module

Profile Name

Click on the drop-down arrow and select the Import profile to apply to this operation.

Profile Manager

If an appropriate profile to use is not listed in the 'Profile Name' field, click on this button to display the 'Import Profiles Manager' dialog (see the Manage Import Profiles table).

Import Connectors

Select this checkbox to import any connectors (relationships) between the imported DOORS objects.

Import Attachments

Select this checkbox to import any attachments that the imported DOORS objects might have.

Import Discussions

Select this checkbox to import any discussions associated with the imported DOORS objects.

Import

Click on this button to begin the import process.

Cancel

Click on this button to close the 'Import from Doors' dialog without performing an import.

Help

Click on this button to display this Help topic.

Import Profiles Manager Dialog

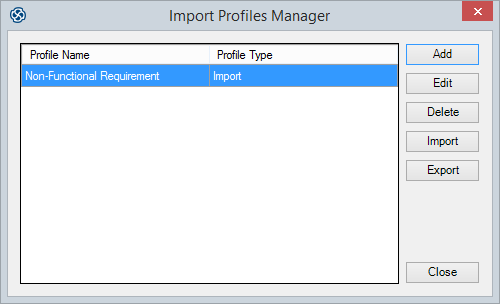

When you click on the Profile Manager button on the 'Import from Doors' dialog, the 'Import Profiles Manager' dialog displays. You use this dialog to create or import new profiles, edit or delete existing profiles, and export profiles to your preferred file system.

Manage Import Profiles

Field/Button

Action

See also

Add

Click on this button to add a new Import profile. The 'Mapping Options' dialog displays; see the Create or Edit an Import Profile table.

Edit

Click on an existing profile name and click on this button to edit the parameters of the selected profile. The 'Mapping Options' dialog displays, showing the current parameters of the profile; see the Create or Edit an Import Profile table.

Delete

Click on an existing profile name and click on this button to immediately remove that profile from the list. There is no confirmatory prompt.

Import

Click on this button to display the 'Import a Profile - Doors Extension' browser. Browse for the location of the required profile file (.eProfile), and click on the file name and on the Open button.

A status message displays. Click on the OK button; if the operation was successful, the profile name displays on the 'Import Profiles Manager' dialog. If unsuccessful, the profile is not added to the list.

Export

Click on a profile name and click on this button to export that profile to a file system location as a .eProfile file. The 'Save As' browser displays. Browse to the required location and click on the Save button. A status message displays; click on the OK button to clear the message.

Close

When you have finished using the 'Import Profiles Manager' dialog, click on this button to return to the 'Import from Doors' dialog.

Import Mapping Options Dialog

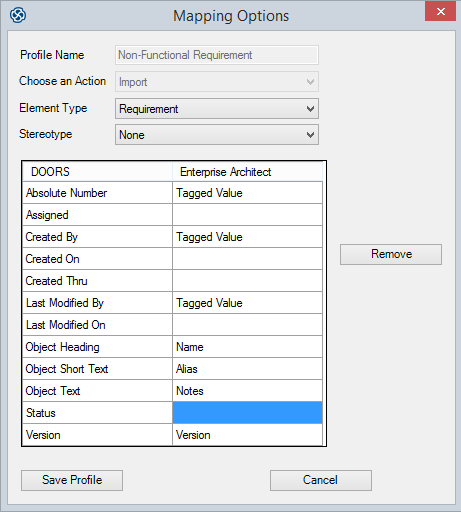

When you click on the Add button or Edit button on the 'Import Profiles Manager' dialog, the 'Mapping Options' dialog displays. This dialog maps IBM® Rational® DOORS® Object properties to Enterprise Architect Requirement or Use Case element properties, and helps you to define which properties to import. You can use the profile many times to update the Enterprise Architect Package with changes in the DOORS module objects.

Create or Edit an Import Profile

Field/Button

Action

See also

Profile Name

Type in an appropriate name for the import profile.

Choose an Action

Click on the drop-down arrow and select 'Import'. You can also reset the profile to 'Export' to use it for exporting Requirements from the Enterprise Architect Package to the DOORS module.

Element Type

Click on the drop-down arrow and select the element type to create or overwrite with the DOORS data - either 'Requirement' or 'Use Case'.

Stereotype

Click on the drop-down arrow and select any stereotype you want to set on the elements resulting from the import.

DOORS

Lists the DOORS object properties available in the selected DOORS module.

Enterprise Architect

Lists the Enterprise Architect properties mapped to the DOORS properties.

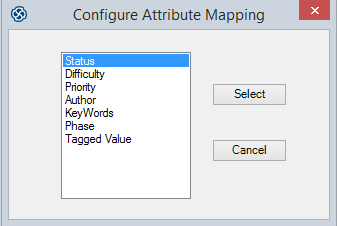

You can double-click on an empty property field to display the 'Configure Attribute Mapping' dialog, which provides a list of Enterprise Architect properties that can be mapped to the DOORS property.

Click on a property and on the Select button to map it to the DOORS property.

Remove

If necessary, click on a mapped Enterprise Architect property field and click on this button to clear the field and unmap the property.

Save Profile

Click on this button to save the profile definition you have created and return to the 'Import Profiles Manager' dialog.

Cancel

Click on this button to close the 'Mapping Options' dialog without saving the profile information.
