Example Scripts

You can create a wide range of shapes, effects and text statements using Shape Scripts, to enhance the appearance and information value of the elements and connectors you create. Some examples of such scripts are provided here.

Access

Ribbon

Configure > Reference Data > UML Types > Stereotypes (specify stereotype) : Shape Script + Assign, or

Configure > Reference Data > UML Types > Stereotypes (specify stereotype) : Shape Script + Edit

Examples

Shape

Script

// BASIC SHAPES

shape main

{

     setfillcolor(255, 0, 0); // (R,G,B)

     rectangle(0, 0, 90, 30); // (x1,y1,x2,y2)

     setfillcolor(0, 255, 0); // (R,G,B)

     ellipse(0, 30, 90, 60); // (x1,y1,x2,y2)

     setfillcolor(0, 0, 255); // (R,G,B)

     rectangle(0, 60, 90, 90); // (x1,y1,x2,y2)

}

// SINGLE CONDITIONAL SHAPE

shape main

{

     if (HasTag ("Trigger", "Link"))

     {

               // Only draw if the object has a Tagged Value Trigger=Link

               // Set the fill color for the path

               setfillcolor(0, 0, 0);

               startpath(); // Start to trace out a path

               moveto(23, 40);

               lineto(23, 60);

               lineto(50, 60);

               lineto(50, 76);

               lineto(76, 50);

               lineto(50, 23);

               lineto(50, 40);

               endpath(); // End tracing out a path

               // Fill the traced path with the fill color

               fillandstrokepath();

               return;

     }

}

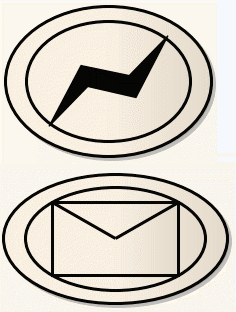

// MULTI CONDITIONAL SHAPE

shape main

{

     startpath();

     ellipse(0, 0, 100, 100);

     endpath();

     fillandstrokepath();

     ellipse(3, 3, 97,97);

     if (HasTag ("Trigger", "None"))

     {

               return;

     }

     if (HasTag ("Trigger", "Error"))

     {

               setfillcolor(0, 0, 0);

               startpath();

               moveto(23, 77);

               lineto(37, 40);

               lineto(60, 47);

               lineto(77, 23);

               lineto(63, 60);

               lineto(40, 53);

               lineto(23, 77);

               endpath();

               fillandstrokepath();

               return;

     }

     if (HasTag ("Trigger", "Message"))

     {

               rectangle(22, 22, 78, 78);

               moveto(22, 22);

               lineto(50, 50);

               lineto(78, 22);

               return;

     }

}

// SUB SHAPES

shape main

{

     rectangle(0, 0, 100, 100);

     addsubshape("red", 10, 20);

     addsubshape("blue", 30, 40);

     addsubshape("green", 50, 20);

     addsubshape("red", 100, 20);

     shape red

     {

               setfillcolor(200, 50, 100);

               rectangle(0, 0, 100, 100);

     }

     shape blue

     {

               setfillcolor(100, 50, 200);

               rectangle(0, 0, 100, 100);

     }

     shape green

     {

               setfillcolor(50, 200, 100);

               rectangle(0, 0, 100, 100);

     }

}

// EDITABLE FIELD SHAPE

shape main

{

     rectangle(0, 0, 100, 100);

     addsubshape("namecompartment", 100, 20);

     addsubshape("stereotypecompartment", 100, 40);

     shape namecompartment

     {

               h_align = "center";

               editablefield = "name";

               rectangle(0, 0, 100, 100);

               println("name: #name#");

     }

     shape stereotypecompartment

     {

               h_align = "center";

               editablefield = "stereotype";

              rectangle(0, 0, 100, 100);

              println("stereotype: #stereotype#");

     }

}

// RETURN STATEMENT SHAPE

shape main

{

     if (hasTag("alternatenotation", "false"))

     {

                //draw ea's inbuilt glyph

                drawnativeshape();

                //exit script with the return statement

                return;

     }

     else

     {

                //alternate notation commands

                //...

               rectangle(0, 0, 100, 100);

     }

}

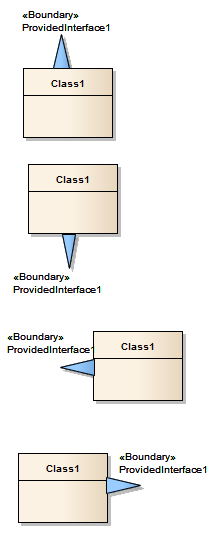

//EMBEDDED ELEMENT SHAPE POSITION ON PARENT EDGE

shape main

{

     defsize(60,60);

     startpath();

     if(hasproperty("parentedge","top"))

     {

               moveto(0,100);

               lineto(50,0);

               lineto(100,100);

     }

     if(hasproperty("parentedge","bottom"))

     {

               moveto(0,0);

               lineto(50,100);

               lineto(100,0);

     }

     if(hasproperty("parentedge","left"))

     {

               moveto(100,0);

               lineto(0,50);

               lineto(100,100);

     }

     if(hasproperty("parentedge","right"))

     {

               moveto(0,0);

               lineto(100,50);

               lineto(0,100);

     }

     endpath();

     setfillcolor(153,204,255);

     fillandstrokepath();

}

// CLOUD PATH EXAMPLE SHAPE

shape main

{

     StartCloudPath();

     Rectangle(0, 0, 100, 100);

     EndPath();

     FillAndStrokePath();

}

// CONNECTOR SHAPE

shape main

{

     // draw a dashed line

     noshadow=true;

     setlinestyle("DASH");

     moveto(0,0);

     lineto(100,0);

}

shape source

{

     // draw a circle at the source end

     rotatable = true;

     startpath();

     ellipse(0,6,12,-6);

     endpath();

     fillandstrokepath();

}

shape target

{

     // draw an arrowhead at the target end

     rotatable = true;

     startpath();

     moveto(0,0);

     lineto(16,6);

     lineto(16,-6);

     endpath();

     fillandstrokepath();

}

// DOUBLE LINE

shape main

{

     setlinestyle("DOUBLE");

     moveto(0,0);

     lineto(100,0);

}

// ROTATION DIRECTION

shape main

{

     moveto(0,0);

     lineto(100,0);

     setfixedregion(40,-10,60,10);

     rectangle(40,-10,60,10);

     if(hasproperty("rotationdirection","up"))

     {

               moveto(60,-10);

               lineto(50,0);

               lineto(60,10);

     }

     if(hasproperty("rotationdirection","down"))

     {

               moveto(40,-10);

               lineto(50,0);

               lineto(40,10);

     }

     if(hasproperty("rotationdirection","left"))

     {

               moveto(40,-10);

               lineto(50,0);

               lineto(60,-10);

     }

     if(hasproperty("rotationdirection","right"))

     {

               moveto(40,10);

               lineto(50,0);

               lineto(60,10);

     }

}

// GET A VALUE RETURNED BY AN ADD-IN

shape main

{

     //Draw a simple rectangle

     Rectangle(0,0,100,100);

     //Print string value returned from Add-In "MyAddin",

     //Function "MyExample" with two string parameters

     Print("#ADDIN:MyAddin, MyExample, param1, param2#");

}

     // METHOD SIGNATURE FOR ADD-IN FUNCTION:

     // Public Function MyExample(Repository As EA.Repository,

     // eaGuid As String, args As Variant) As Variant

// ADD CUSTOM COMPARTMENTS BASED UPON CHILD ELEMENTS

// OR RELATED ELEMENTS

(See the Add Custom Compartments to Element Help topic)

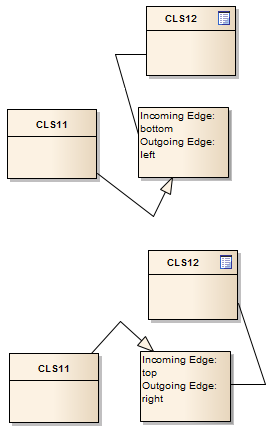

// RETURN THE INCOMING AND OUTGOING EDGE FOR CONNECTORS

// GOING INTO AND OUT OF AN OBJECT

shape main

{

      //Draw a simple rectangle

     Rectangle(0,0,100,100);

     //Print incoming edges on the element

     Print("Incoming Edge: #incomingedge#\n");

     //Print outgoing edges on the element

     Print("Outgoing Edge: #outgoingedge#\n");

}

// DRAW A DECORATION ICON ON TOP OF THE DEFAULT

// ELEMENT SHAPE

decoration mail

{

     orientation= "NE";

     image ("icon image", 0, 0, 100, 100);

     // "icon image" being the name of the 16x16 image which is loaded into the Image Manager

}

// DRAW AN IMAGE FROM A FILE, AND AN EDITABLE NAME FIELD

shape main

{

     addsubshape ("theimage", 100, 100);

     addsubshape ("namecompartment", 100, 100);

     shape theimage

     {

               image ("element image", 0, 0, 100, 100);

               // "element image" being the name of the image that is loaded into the Image Manager

     }

     shape namecompartment

     {

               h_align = "center";

               editablefield = "name";

               println ("#name#");

     }

}

// CHECK WHETHER A COMPOSITE ELEMENT ICON IS REQUIRED

// AND, IF SO, DRAW ONE

decoration comp

{

     orientation="SE";

     if(hasproperty("IsDrawCompositeLinkIcon","true"))

     {

          startpath();

          ellipse(-80,29,-10,71);

          ellipse(10,29,80,71);

          moveto(-10,50);

          lineto(10,50);

          endpath();

          strokepath();

     }

}

// ALLOW A SHAPESCRIPT TO SHOW THE FULLY SCOPED OBJECT

// NAME OF AN OWNED ELEMENT, INCLUDING OWNING ELEMENTS

// AND OWNING PACKAGES, WHEN THE DIAGRAM PROPERTIES

// 'DISABLE FULLY SCOPED OBJECT NAMES' OPTION IS

// DESELECTED, JUST AS FOR AN ELEMENT WITHOUT A

// SHAPESCRIPT.

shape main

{

     layouttype= "border";

     rectangle (0, 0, 100, 100);

     addsubshape ("padding", "N");

     addsubshape ("name", "CENTER");

     shape padding

     {

               preferredheight=8;

     }

     shape name

     {

               v_align= "top";

               h_align= "center";

               printwrapped ("#qualifiedname#");

     }

}

// SHOW THE NAME OF THE OWNING PACKAGE WHEN THE ELEMENT

// IS USED ON A DIAGRAM NOT IN THAT PACKAGE, AND THE

// DIAGRAM PROPERTIES 'SHOW NAMESPACE' OPTION IS SELECTED.

shape main

{

     layouttype= "border";

     v_align= "CENTER";

     h_align= "CENTER";

     ellipse (0, 0, 100, 100);

     printwrapped ("#name#");

     addsubshape ("path", "S");

     shape path

     {

               v_align= "top";

               h_align= "center";

               if (hasproperty ("packagepath", ""))

               {

               }

          else

               {

                    printwrapped ("(from #packagepath#)");

               }

     }

}
