Generate StateMachine Diagram

When you create a scenario on an element and then generate a StateMachine diagram, a StateMachine is created as a child of the selected element to act as a container for the diagram.

  • Each value in the State column is modeled as a State
  • The scenario steps become the Transition connectors between the States
  • The values of the Uses and Results columns are added as Tagged Values of the Transition connectors

Access

On a diagram or in the Project Browser, select an element and:

Ribbon

Design > Element > Manage > Properties > Scenarios > Structured Specification : | State  or

Design > Element > Manage > Specific Properties Page > Scenarios > Structured Specification : | State

Context Menu

Right-click on element | Properties > Scenarios > Structured Specification : | State   or

Right-click on element | Properties Page | Scenarios > Structured Specification : | State

Keyboard Shortcuts

Alt+Enter : Scenarios > Structured Specification : |State  or

Shift+Alt+S > Structured Specification : |State

Other

Double-click on Element : Scenarios > Structured Specification : | State

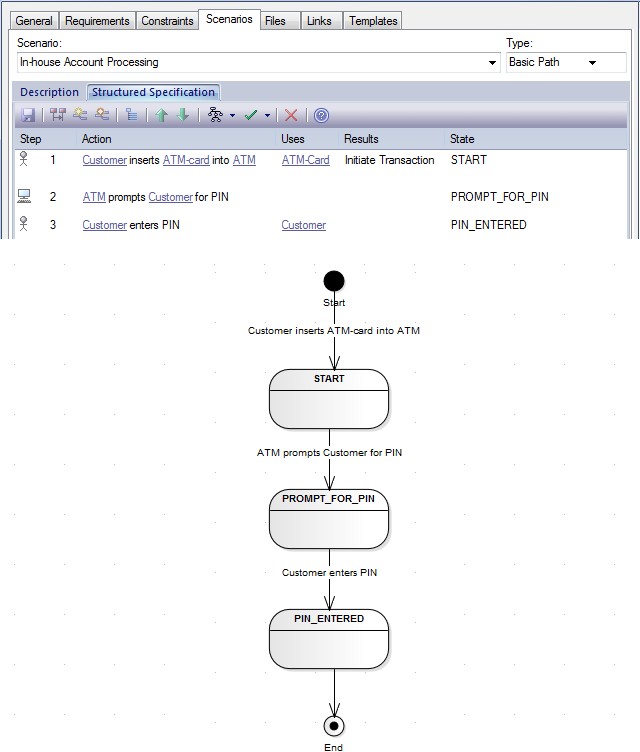

Example
