Triggers represent signals and events which may activate transitions leaving the current state(s). A trigger may represent a real world signal or event such as:

A button being pressed
A message being received
A pedal being depressed
A switch being thrown
A state in a concurrent region being entered or exited

For a trigger to have an effect

Transitions have to be defined which will fire when the simulation receives the signal/event
The current simulation state(s) or its parent(s) must have an outgoing transition that accepts that trigger
The transition activated must be unguarded or have a guard which will evaluate to true




See also

Creating Triggers

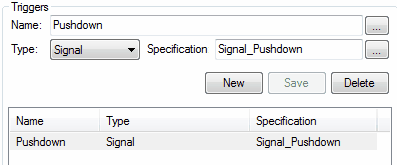

Triggers are either created as an instance of a Signal element or as an anonymous event. Triggers are connected to Transitions in the Transition Properties dialog as shown below. In this example a Trigger named 'Pushdown' has been defined based on the Signal 'Signal_Pushdown'.

Omitting the Type and Specification details results in a simple anonymous Trigger.
If parameters are needed, these are defined on the Signal and must be supplied at the time the event fires




A trigger will appear in the Project Browser like the image below:



Creating Triggers


Simulation Events

Using Triggers

Triggers are deployed by connecting them to transitions as in the example above and used during simulation by 'firing' them into the running simulation as required.

When using triggers the following should be taken into account:

A 'triggered' transition can not take place until its effective trigger is signalled or fired.
When a trigger is received it will activate all current waiting transitions dependent on that trigger (i.e. the trigger is broadcast)
Triggers are evaluated on all transitions for all parents of a current child state. This allows a parent state to exit all child states if necessary.
Once used in a simulation, a trigger is consumed and must be re-fired if needed again.
Sets of triggers may be saved and either manually or automatically fired to facilitate automated model simulation under different event models.



Re-Signal Triggers

Type-Specific Menu Section

Firing Triggers

Firing triggers means to signal or activate a trigger within the current simulation. This may activate zero, one or many waiting transitions depending on the state and concurrency of the current simulation.

Firing triggers can be achieved in many ways. The most efficient is the Waiting Triggers list.

During the course of model simulation, if the simulator reaches an impasse due to required triggers not being available (fired), the list of all possible candidate triggers is shown in the 'Waiting Triggers' list of the Simulation Events window (see below). Double clicking a trigger in this list will fire it into the simulation.




Other ways to fire a trigger include:

1. Double click an un-signalled trigger in the Events window


Note: You may also use the context menu on the events above to either signal an un-signalled event, or to re-signal an event which has already been fired previosuly.


2. Use the context menu of the Transition required to fire and select the 'Signal Trigger in Simulation' menu option.
