An Action element describes a basic process or transformation that occurs within a system. It is the basic functional unit within an Activity diagram. Actions can be thought of as children of Activities. Both represent processes, but Activities can contain multiple steps or decomposable processes, each of which can be embodied in an Action. An Action cannot be further broken down or decomposed.
For a basic (Atomic) Action, you can define the effect of the Action using the Effect page of the element Properties dialog, and select to display the effect on the diagram. An Action can be further defined with pre-condition and post-condition notes.

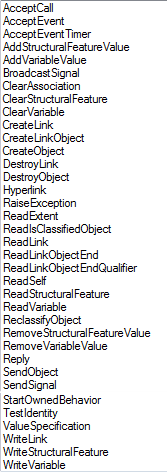

Certain properties can be graphically depicted on the Action. When you first drag the Action icon from the Toolbox onto a diagram, Enterprise Architect prompts you to select from a list of the more common types of Action to create. If you select the Other option on this list, the New Action dialog displays; the Other drop-down list on this dialog enables you to select a more specialized type of Action from a complete list of Action types.
If you later decide that the Action type is not appropriate, you can change it on the Advanced page of the Action element Properties dialog - select the required new type from the Kind drop-down list. For a Value Specification Action, you can also set the value on this page.
The data values passed out of and into an Action can be represented by Action Pins. For an Action type other than a basic Action, you can also assign Action Pins to represent specific properties.
An Action can also be depicted as an Expansion Node to indicate that the Action comprises an Expansion Region.
OMG UML Specification:
The OMG UML specification (UML Superstructure Specification, v2.1.1, p. 241) states:
An action is a named element that is the fundamental unit of executable functionality. The execution of an action represents some transformation or processing in the modeled system, be it a computer system or otherwise.
The OMG UML specification (UML Superstructure Specification, v2.1.1, p. 313) also states:
An action may have sets of incoming and outgoing activity edges that specify control flow and data flow from and to other nodes. An action will not begin execution until all of its input conditions are satisfied. The completion of the execution of an action may enable the execution of a set of successor nodes and actions that take their inputs from the outputs of the action.
