Enterprise Architect Install Process via Crossover

Enterprise Architect can be installed on both the Linux and Intel Mac platforms using the commercially available Windows compatibility layer, Crossover by CodeWeavers.

This page describes the requirements and procedures for installing Enterprise Architect using Crossover. Screens shown in this page may vary slightly depending on your operating system.

Prerequisites

Both the Trial and Registered versions of Enterprise Architect require the following applications to be installed first, in the listed sequence:

  1. CodeWeavers' Crossover version 6.2 (or later)
  2. Microsoft DCOM98
  3. Microsoft Internet Explorer 6.0
  4. Microsoft Data Access Components 2.7 (MDAC)

Procedures

This document contains the following sections:

  1. Install Crossover 6.2
  2. Create New Win98 Bottle
  3. Install DCOM98
  4. Install Internet Explorer 6.0
  5. Install MDAC 2.7
  6. Install Microsoft Fonts (Optional)
  7. Install ODBC Drivers (Optional)
  8. Install Enterprise Architect
  9. Update EA to Latest Build under Crossover

Notes:

  • EA and its prerequisite applications must use a dedicated Win98 bottle; ensure you create this and make it the default separate from any other bottles available.
  • The Crossover Configuration Manager identifies software you have already loaded to the system; if you already have prerequisite software loaded, ensure that it is the correct version and that it has any required settings identified in the procedures listed above (including being installed in the same WIN98 bottle).
  • MDAC and EA are not automatically downloaded by CrossOver; you must download the .exe files to an appropriate directory on the system.
  • You can download the appropriate .exe file for EA from the links at the top of this topic.
  • You can download the .exe file for MDAC 2.7 from here (download size 5.1 MB)
  • If any step in this process fails, please repeat the step; if you still have no success, contact the appropriate application support.

For additional information, issues, questions and solutions concerning EA on Linux or Intel Mac, refer to the discussion forum.

1. Install Crossover 6.2, Linux Standard

Download and install the Crossover Linux Standard software from the CodeWeavers site (center graphic).

2. Create New Win98 Bottle

  1. From your system Applications menu, select Crossover | Configuration.
  2. On the Configuration Manager window, select the Manage Bottles tab and click on the Create New Bottle button.
    2.2 - Create New Bottle
  3. On the Create new bottle window, in the Bottle name field, type a name that represents the EA installation. For example, EnterpriseArchitectForWine.
  4. In the Create from template field, select or type win98.
  5. Click on the OK button. The Available bottles panel now shows the bottle you have created.
    2.5 - Available Bottles
  6. You must make the new win98 bottle the default for the applications you are installing to run EA on Linux. Click on the bottle name and click on the Make default button.

3. Install DCOM98

  1. On the Crossover Configuration Manager window, click on the Add/Remove tab, and on the Install software button. The Crossover Installation Wizard displays.
    3.1. Install Software
  2. Scroll through the list of applications to find DCOM98, and click on it.
  3. Click on the Next button.
    3.3 - Install Software
  4. Select the Express install option and click on the Next button. Follow the on-screen instructions to complete the installation.
    3.4 - DCOM98
  5. Select the Install more Windows software checkbox.

    Note: We recommend that you do not select the Remove installer files checkbox.
  6. Click on the Finish button. The initial Crossover Installation window redisplays, listing DCOM98 with an asterisk against it. This indicates that the software is installed.
    3.6 - DCOM98

For information on Microsoft's DCOM98 Redistributable, see DCOM98.

4. Install Internet Explorer 6.0

  1. On the Crossover Installation Wizard, scroll through the list of applications to find Internet Explorer 6.0, and click on it.
  2. Click on the Next button, and select the Express Install option. Accept the licensing agreement and click on the Next button. The Installation Type window displays for the type of installation to perform.
  3. Select the Install Minimal, or customize your browser radio button and click on the Next button. The Component Options window displays.
  4. Click on the Next button, and follow the on-screen instructions to complete the installation. The Windows Update window prompts you to perform a reboot.
  5. Click on the Finish button. The Crossover Installation Wizard Install Software window redisplays.

    Note: Crossover creates an entry in its own Installed Software list, a link in your operating system Applications panel and a shortcut on the Desktop, as shown below.

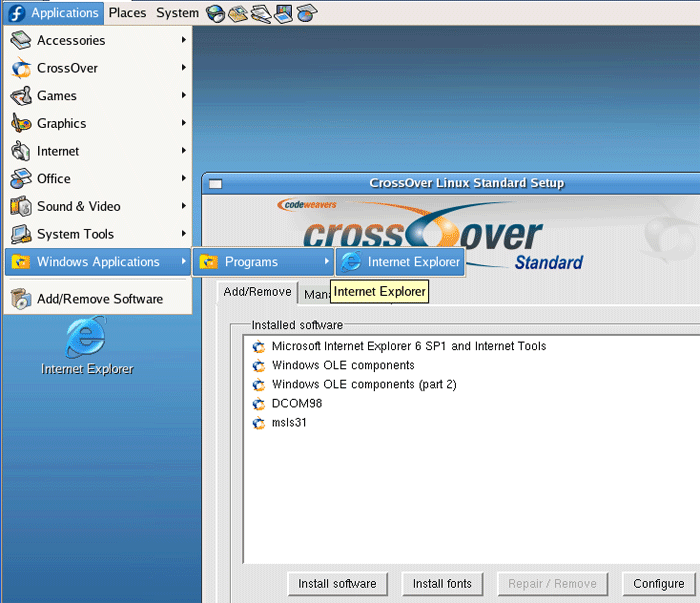

    4.5 - CrossOver Office

For information on Microsoft Internet Explorer 6 Service Pack 1, see IE 6.0 SP1.

5. Install MDAC 2.7

  1. On the Crossover Installation Wizard, select the Install unsupported software checkbox.
    5.1 - Install unsupported software
  2. Click on the Next button. The Install Software Unsupported software window displays.
    5.2 - Install Software Unsupported software
  3. Select the Other *.exe file option and type or browse for the location of the MDAC 2.7 .exe file.
  4. Click on the Next button. The bottle selection window displays.
    5.4 - Bottle selection
  5. Select the Other existing bottle option. This field should default to the name of the WIN98 bottle you created in stage 2.
  6. Click on the Next button. The Microsoft Data Access Components 2.7 Setup window displays.
  7. Click on the Finish button, and follow the on-screen instructions to complete the installation.
  8. Click on the Close and Exit buttons, and again on the Finish button.

    Note: When you install applications in Crossover, it creates an entry in its own Installed Software list, a link in your operating system Applications panel and a shortcut on the Desktop. It does not do this for MDAC 2.7.
  9. To confirm that you have successfully installed MDAC 2.7, on the Add/Remove tab of the CrossOver Linux Standard Setup window, click on the Configure button. The Configuring CrossOver Linux Standard window displays.
  10. Click on the Control Panel tab. If necessary, scroll up or down the window and check for the “ODBC Data Sources (32 bit)” entry; this can only display if MDAC 2.7 is successfully installed.
    5.10 - Control Panel

6. Install Microsoft Fonts (Optional)

  1. On the Configuring CrossOver Linux Standard window, click on the Fonts tab.
    6.1 - Fonts
  2. Click on the Add all fonts button, and accept any licensing agreements displayed. The Available fonts panel displays all the new fonts downloaded from the Microsoft website.
    6.2 - Available fonts
  3. Click on the OK button. The Add/Remove tab of the CrossOver Linux Standard Setup window now includes the entry All core fonts in the Installed software list.
    6.4 - Add/Remove

7. Install ODBC Drivers (Optional)

If you need to install ODBC drivers follow the same procedure as for installing MDAC 2.7, installing unsupported software, identifying the file location of your downloaded .exe file, and using the WIN98 bottle you created in stage 2.

8. Install Enterprise Architect

  1. On the Add/Remove tab of the CrossOver Linux Standard Setup window, click on the Install software button. The Crossover Installation Wizard window displays.
  2. Select the Install unsupported software checkbox, and click on the Next button. The Install Software Unsupported software window displays.
  3. Select the Other *.exe file option and type or browse for the location of the EA .exe file.
  4. Click on the Next button. The bottle selection window displays.
  5. Select the Other existing bottle option. This field should default to the name of the WIN98 bottle you created in stage 2.
  6. Click on the Next button. The Enterprise Architect <version> <edition> Setup window displays.
  7. Click on the Next button, and follow the on-screen instructions to complete the installation.
  8. Click on the Finish button. Crossover creates an EA entry in its own Installed Software list, a link in your operating system Applications panel and a shortcut on the Desktop.
  9. Click on a link to start EA. The following prompt displays:
    8.9 - EA
  10. Click on the Yes button. After a brief pause, EA displays at the opening screen appropriate to the version and edition.

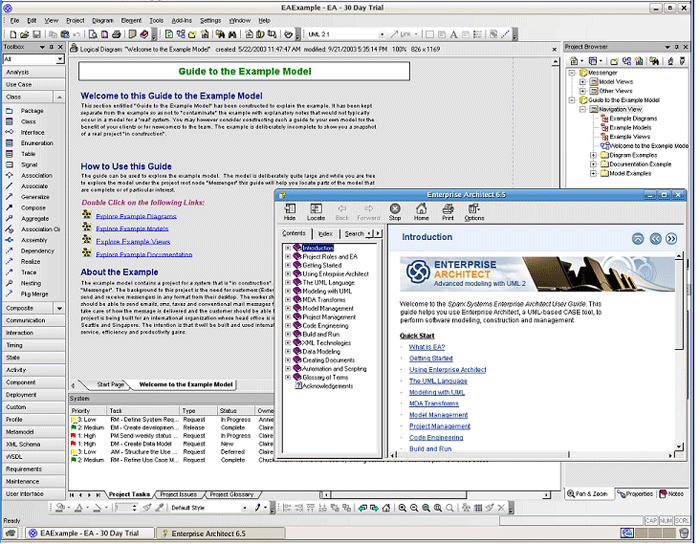

    8.10 - EAExample

9. Update to latest EA Build Under Crossover

  1. On the Add/Remove tab of the CrossOver Linux Standard Setup window, click on the Enterprise Architect entry.
    9.1 - CrossOver Linux Standard Setup
  2. Click on the Repair / Remove button. The EA Maintenance window displays.
    9.2 - EA Maintenance
  3. Click on the Remove radio button, and on the Next button. Follow the prompts to remove EA from your system.
  4. On the Add/Remove tab of the CrossOver Linux Standard Setup window, click on the Install software button. The Crossover Installation Wizard window displays, minus the EA entry.
  5. Follow the procedure in Install Enterprise Architect.
