Business Process Diagram
Getting to know the Business Process Diagram
Introducing the Business Process Diagram
The Business Process Diagram is part of the Business Process Model and Notation (BPMN) and is the main diagram type for defining business processes. The diagram can include Start, Intermediate, End Events, Business Processes, Activities, Gateways and Pools and Lanes and more. The elements can be given a name and detailed descriptions can be added to the notes. By connecting the flow objects with connectors a sequence of activities and gateways and events can describe the business process.
A process hierarchy can be constructed by nesting Business Processes and Activities in the Project Browser and using the Child Diagram functionality to enable drill down from the value chain level down to the lowest level processes.
Where to find the Business Process Diagram
Ribbon: Design > Diagram > New > BPMN x.y > Business Process
Project Browser Caption Bar Menu: New Diagram | BPMN x.y | Business Process
Project Browser context menu: Add Diagram... | BPMN x.y | Business Process
Usage of the Business Process Diagram
Business Process Diagrams can be used to model the Business Processes in an entire organization or part of an organization. Business Processes can be created to represent the current or future state of the organization at any level of detail from the value chain down to a process performer level. A process hierarchy would typically be defined that would set the standards for the number of levels, naming, organisation of the processes and more.
Options for the Business Process Diagram

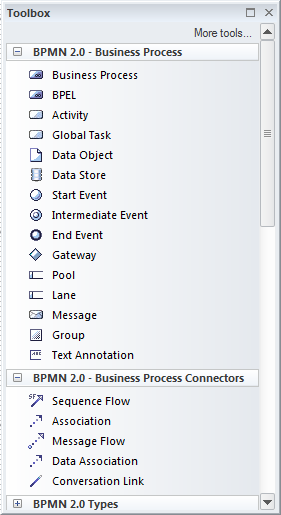

Business Process Diagrams can be drawn at different levels of formality from a Basic Flow Chart style of diagram used to represent a simple Business Process to a sophisticated diagram making use of many of the markers for Events and Activities to describe complex business processes. There is a toolbox which contains a range of elements, relationships and Patterns for creating the models.
The Business Process Diagram can also be used to generate Business Process Execution Language (BPEL) which is an XML language that can be ingested by a number of tools.
The Business Process Diagram (like any diagram) can be viewed as an element list which makes working with the element's properties easier.
Diagram Filters can also be used when presenting the diagrams to draw attention to parts of the diagrams.
