Timing Diagram

A Timing diagram defines the behavior of different objects within a time-scale. It provides a visual representation of objects changing state and interacting over time. You can use it to:

  • Define hardware-driven or embedded software components; for example, those used in a fuel injection system or a microwave controller
  • Specify time-driven business processes

You generate Timing diagram elements and connectors from the Timing pages of the Toolbox.

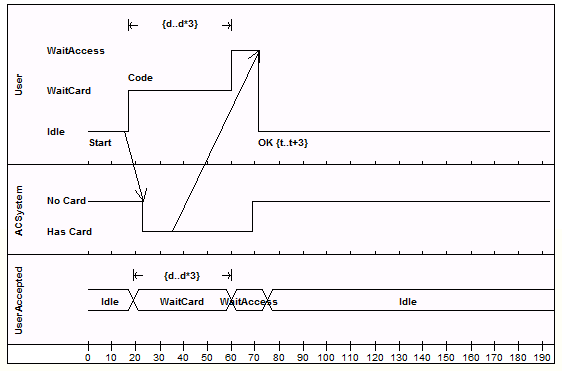

Example Diagram

Timing Diagram Element Toolbox Icons



See also

A State Lifeline element represents the state of an object across a measure of time, using changes in y-axis to represent discrete transitions between states.

State Lifeline

A Value Lifeline element represents the state of an object across a measure of time, using parallel lines indicating a steady state, along the x-axis.

Value Lifeline

A Message Label is an alternative way of denoting Messages between Lifelines, which is useful for 'uncluttering' Timing diagrams strewn with messages.

Message Label

A Message Endpoint element defines the termination of a State or Value Lifeline in a Timing diagram.

Message Endpoint

A Diagram Gate is a simple graphical way to indicate the point at which messages can be transmitted into and out of interaction fragments.

Diagram Gate

Timing Diagram Connector Toolbox Icon



See also

Messages indicate a flow of information or transition of control between elements.


Learn more
