Display Inherited Operations

You can configure a selected element in a diagram to display the complete operation set obtained from all ancestors in the element's type hierarchy, as well as those directly owned.

Access

Context Menu

Right-click on element on diagram | Features and Properties | Feature & Compartment Visibility

Keyboard Shortcuts

Ctrl+Shift+Y

Enable Behavior

On the 'Feature and Compartment Visibility' dialog, in the 'Inherited Features' panel, select the 'Show Operations' checkbox.

Example

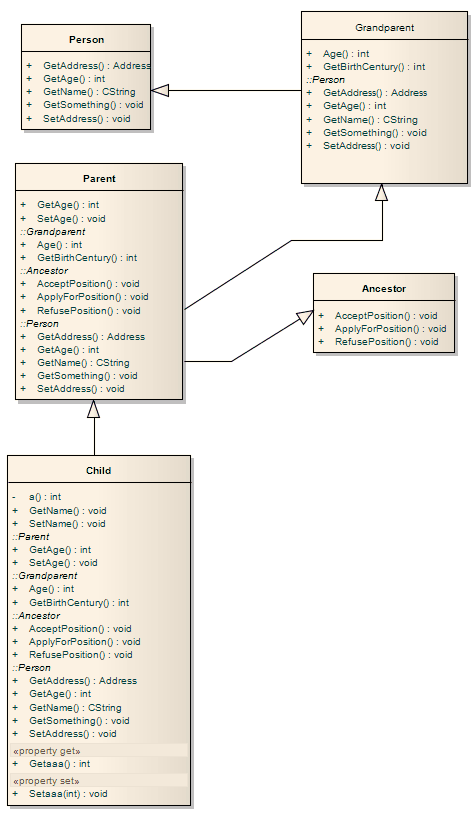

This diagram illustrates the behavior, where it has been enabled for each element in a simple hierarchy. The Child element inherits from all other levels of the hierarchy.
