Add a New Category
You can add new Categories to the Team Review, in which to store related Topics and Documents.
Access
Ribbon |
Construct > Project > Team Review Specification - Specify > Specification > Team Review > Open Team Review |
Keyboard Shortcuts |
|
Create a Category
Step |
Action |
See also |
---|---|---|
1 |

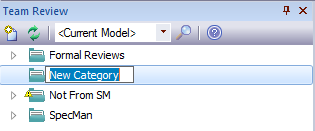

Right-click on a blank area in the Team Review window and select the 'New Category' option. A new 'Category' icon displays in the hierarchy.
|
Work on Team Review Items |
2 |
Overtype the New Category text with the name of the Category, and click off the name. The Category description editor displays in the 'Team Review' tab; type the appropriate Category description, if required. |
|
3 |
Add new Topics and/or resources to the Category. |
Add a New Topic Team Review Resources |
Create a Category - Alternative
Step |
Action |
See also |
---|---|---|
1 |
Right-click on a blank area in the Team Review window and select the 'New Category from template' option. A new 'Category' icon displays in the hierarchy. |
Work on Team Review Items |
2 |
Overtype the New Category text with the name of the Category, and click off the name. The 'New Category from Template' dialog displays. |
|
3 |
Click on the 'Template' drop-down arrow and select a predefined template for the Category description. Click on the . |
|
4 |
The Category description editor displays in the 'Team Review' tab; type the appropriate Category description, if required. |
|
5 |
Add new Topics and/or resources to the Category. |
Add a New Topic Team Review Resources |
