Using a Note Link connector to attach a Note (UML Comment element) to another element using Sparx Systems Enterprise Architect.

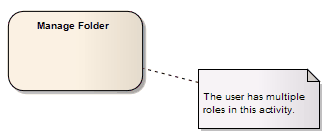

A Notelink connector connects a Note to one or more other elements of any other type.

Both Note and Notelink are available in any category of the Toolbox, in the Common page. You can also select them from the UML Elements toolbar.

Toolbox icon

Note link
