Kanban Options - Filters
The 'Filters' page can be used in conjunction with the Package search defined on the 'Advanced' page, should you want to apply additional filtering.

It is possible to import a Model Search that has already been created, or to create new filters here exactly as you would for any other Model Search.
When adding any of these searches or filters, you must also select at least one Package for the search or filter to work in; you do this on the 'Advanced' page of the 'Kanban' dialog.
Access
Ribbon |
Construct > Resource Management > Kanban > (options to generate and/or open a Kanban diagram) or Start > Personal > My Kanban (displays personal default Kanban diagram) Then Design > Diagram > Manage > Kanban > Filters (on an open Kanban diagram) |
Context Menu |
In the Browser window, right-click on the diagram name | Kanban > Filters, or On a Kanban diagram, either:
|

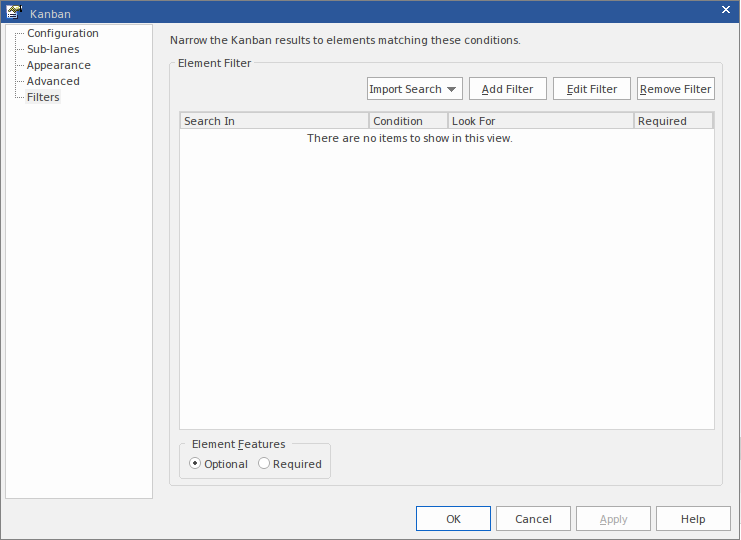

Filter Options
Option |
Action |
See also |
---|---|---|
Import Search |
Click on this button to import a search from either an external XML file ('From File') or from the current model ('From EA'). |
Element Filters |
Add Filter |
Click on this button to define the properties of elements that you want to be added automatically to your Kanban diagram during a search. Note that not all element types can be added to Kanban diagrams; the excluded types are listed in the Notes section. |
Add Filters |
Edit Filter |
Click on this button to edit the currently selected filter in the list. |
|
Optional / Required |
Optional - Select this when at least one filter needs to be matched Required - Select this if all filters need to be matched |
|
Remove Filter |
Click on this button to delete the currently selected filter from the list. |
Notes
- These element types are not included in Kanban diagrams when running a search:
- ActionPin
- Boundary
- Chart
- Constraint
- Diagram Legend
- ExpansionRegion
- GUIElement
- Hyperlink
- InterruptibleActivityRegion
- ModelView
- Note
- Package
- Port
- ProvidedInterface
- RequiredInterface
- Screen
- Sequence
- StateNode
- Text
- TimeSeriesChart
- UMLDiagram
