Install a Core Framework
Enterprise Architect provides a rich and diverse range of modeling technologies including every standard listed in the Schema Composer. These frameworks are available as UML models and/or MDG Technologies using Enterprise Architect's Model Builder. The models themselves are also directly accessible from Enterprise Architect's Reusable Asset Service.
Note: If you are modeling a generic solution and not directly using a core framework such as CIM or UBL, you do not need to install a core framework/model. In that case you are best served creating a data model using simple UML Classes with attributes.
Model Builder
Access
|
Ribbon |
Start > Personal > Model Builder Design > Package > Model Builder |
|
Context Menu |
Right-click on Package | Model Builder (pattern library) |
|
Keyboard Shortcuts |
|
|
Other |
Browser window 'Hamburger' icon > Model Builder (pattern library) |
Note
You can limit the MDG Technologies to use by selecting the ribbon option: 'Specialize > Technologies > Manage Technology'. Here you can see which technologies are currently enabled.
Import Model
Step |
Action |
|---|---|
|
1 |
Display the Model Builder dialog. |
|
2 |
Click on the <perspective name> button and select the required technology. |
|
3 |
Highlight the Technology. |
|
4 |
Select the Technology standards to import. |
|
5 |
Click on the Create Model button to import the framework to your model. |

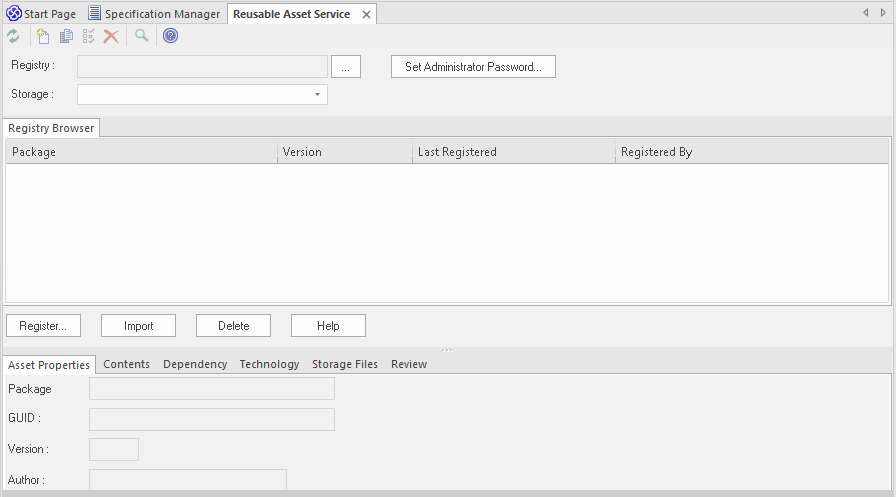

Reusable Asset Service
Access
|
Ribbon |
Publish > Model Exchange > Reusable Assets |
Import Model
Step |
Action |
|---|---|
|
1 |
Connect to the Reusable Asset Service. |
|
2 |
Choose from the available list of Repositories |
|
3 |
Select the UML model Package |
|
4 |
Click OK to import the selected Package to your model. |
