The Pan & Zoom Window

The Pan & Zoom window provides a 'birds-eye' view of diagrams. It enables you to navigate quickly around large diagrams.

Note that Dashboard diagrams are designed to automatically size to the display screen, so the Pan & Zoom facilities are grayed out when these diagrams are opened.

Access

Ribbon	Layout > Tools > Pan and Zoom
Keyboard Shortcuts	Ctrl+Shift+4

Reference

Topic	Detail	See also

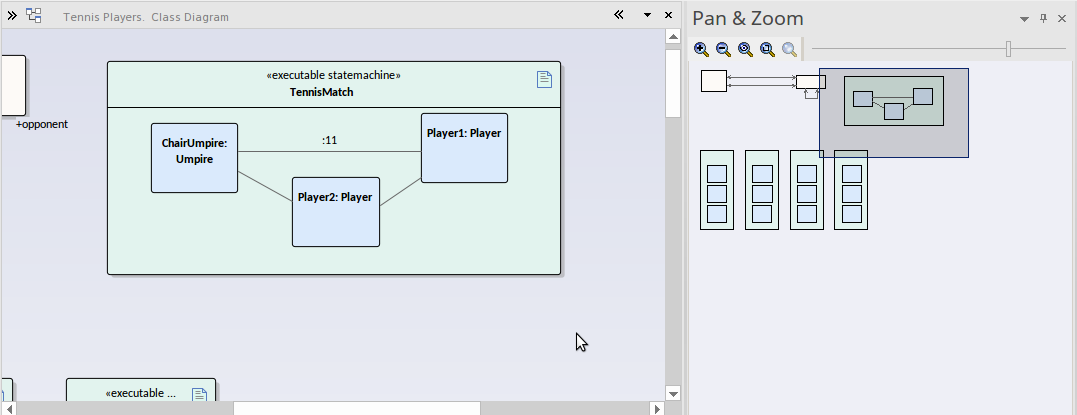

View	The window shows a reduced image of the whole diagram. The shaded box represents the viewed area, displayed on the open diagram.
Toolbar	The toolbar provides these functions (in order): Zoom In Zoom Out Zoom to fit diagram Zoom to fit page Zoom to 100% Zoom Slider
Use	Open the required diagram. Move the cursor onto the shaded box inside the Pan & Zoom window. Hold down the mouse button as you move the cursor to move the shaded box over the open diagram. As you do this, the corresponding area is brought into view on the open diagram. To zoom, use either the Zoom Slider (drag the rectangle along the line) or the buttons located on the tool bar (click on the appropriate button).	Status Bar

Topic

Detail

See also

View

The window shows a reduced image of the whole diagram.

The shaded box represents the viewed area, displayed on the open diagram.

Toolbar

The toolbar provides these functions (in order):

Zoom In
Zoom Out
Zoom to fit diagram
Zoom to fit page
Zoom to 100%
Zoom Slider

Use

Open the required diagram.

Move the cursor onto the shaded box inside the Pan & Zoom window.

Hold down the mouse button as you move the cursor to move the shaded box over the open diagram. As you do this, the corresponding area is brought into view on the open diagram.

To zoom, use either the Zoom Slider (drag the rectangle along the line) or the buttons located on the tool bar (click on the appropriate button).

Status Bar
