Enterprise Architect has a sophisticated and flexible documentation engine that helps you to create and disseminate high quality and fully customizable documentation directly from the model, in document or web page format. A fundamental reason for constructing models is to communicate ideas and concepts, and to create a shared view of a system or process. While many users will be able to view the models inside Enterprise Architect, there are circumstances where screen viewable or printed documentation is required. Model driven document generation is a useful productivity tool because when a model is changed the documentation can be automatically regenerated, saving time and resources and reducing the possibility of errors. The carefully crafted and versatile built-in templates help you to generate high quality documentation out-of-the-box.

Project management and strategic information can also be generated to a series of charts and graphs that provide a visually compelling representation of important project data. The charts are configurable and can be included in documentation or displayed visually in diagrams, or incorporated into a management presentation.


Example Reports

This collection of images demonstrates the output of Enterprise Architect's Web and Document reports, including a sample of editing a document template.


Features

Feature

Description

Generate Documents

One-click generation of RTF, DOCX and PDF style documents.

HTML Reports

Deploy your project via the internet or intranet for quick and easy team communication.

Joomla! Article

Publish your model as a Joomla! article in a local Joomla! installation.

Charting

Bring your reports to life with up-to-the-second charts and graphs from your model.

Virtual Documents

Customize your reports at a model level by defining your report structure and content via a diagram.

Document Templates

Tailor your reports to give them your own unique corporate look and feel, ensuring all documentation looks the same.

Report Generation Facilities

Facility

Detail

See also

Specifying Content

There are many ways to specify the model content being documented; you can:

  • Document a Package and/or its child Packages by manually highlighting the Package and selecting a documentation control
  • Specify embedded Packages for exclusion if child Packages are recursively documented
  • Generate your documentation using a range of system-provided templates that support many different aspects of your model, or develop your own, customized templates to meet your specific requirements
  • Use system-provided or user-customized Stylesheets, Tables of Contents and Cover Pages to further tailor individual reports or sets of reports, independent of the template used
  • Link a Package to a document template to simplify generating consistent types of documentation (for example, Use Case reports) using the 'Resource Documents' feature
  • Select, group and order Packages in a different organization from the Browser window by creating 'Virtual' Documents, either linked through a master document with headers, footers and contents list, or as separate individual documents
How To Generate Documents Excluding Packages from Reports All About Document Templates Basic Document Generation Save as Document Virtual Documents

Document Reports

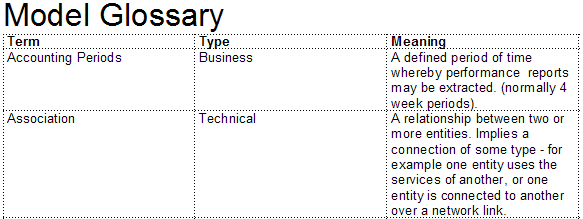

You can generate Document reports in a number of document formats, which you can tailor using templates and Stylesheets to alter the content and appearance of the generated output.

Enterprise Architect has a fully-featured document generator that features:

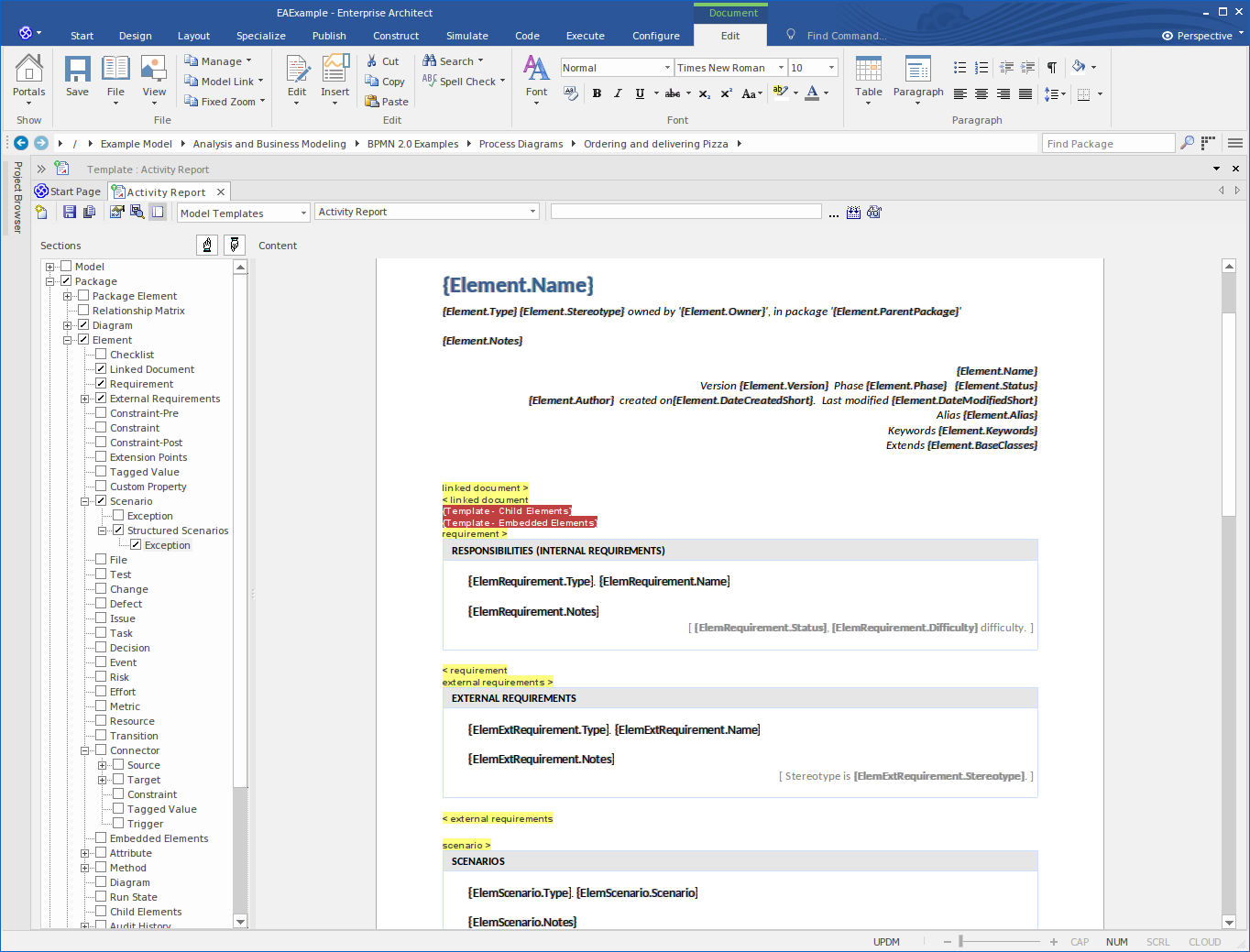

  • Feature rich WYSIWYG template editor support
  • An easy-to-use document generator
  • An embedded viewer that enables you to view documents generated within the system

Using Virtual Documents, you can draw out information on structurally separate model elements in a set of individual reports, or in a combined report under a master document with common headers, footers and styles.

Document Generation How To Generate Documents Design Custom Document Templates Virtual Documents

System Reports

You can also generate a number of system-provided reports on different aspects of your model, such as the elements in a Package in Implementation relationships or in Dependency relationships.

System Documents

Web Documentation

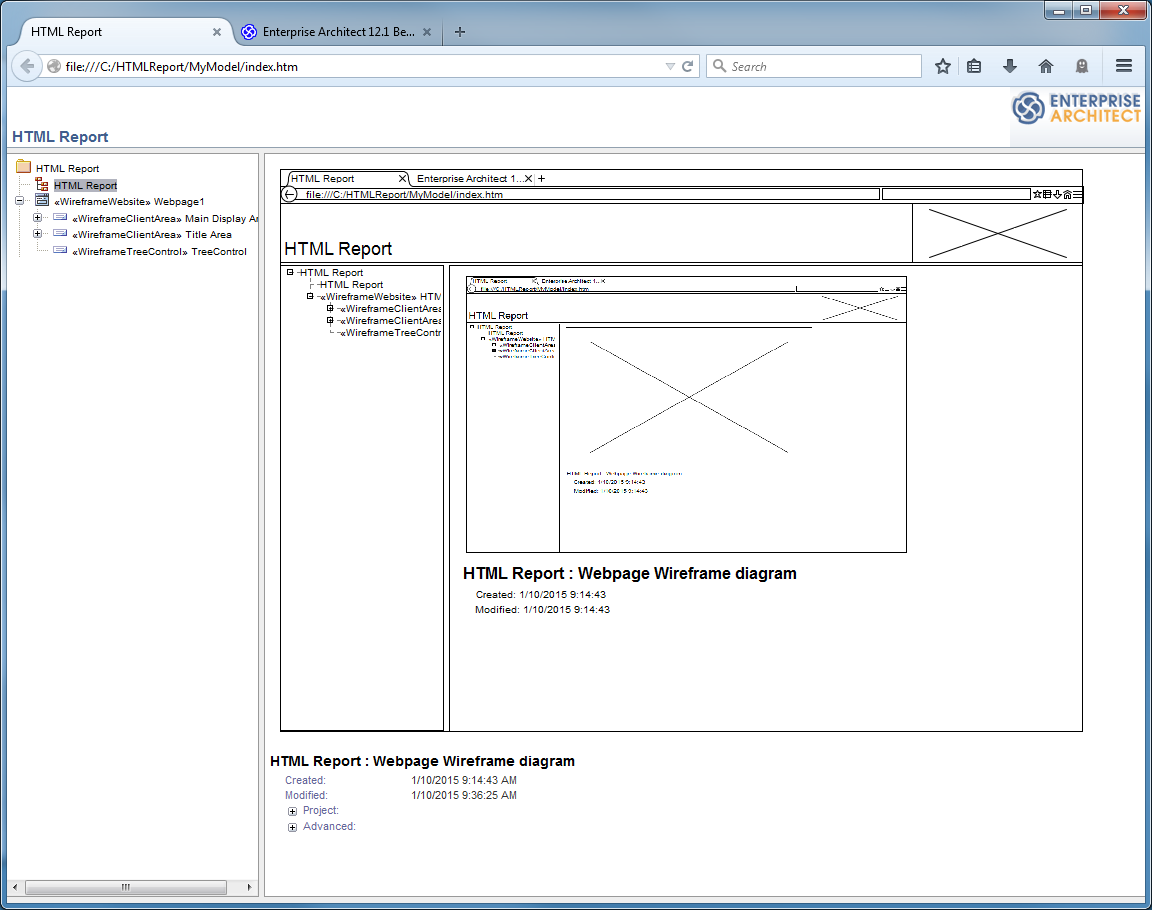

It is possible to provide automated web-based publishing of your Enterprise Architect models, making it simple to explore large models efficiently on-line.

You can export an entire model or a single branch of the model to web pages, or to Joomla! Articles, and also create web style templates to customize the web page output.

Web Reports

Standard Charts

You can capture statistical information on a range of element properties across the model, and display this information on a diagram in one of several formats, such as a Pie chart, Bar chart or 3-D column chart. You can also print and distribute the charts you have created, using the standard 'Diagrams Only' report facility.

Charts Diagrams Only Report
