Timing Diagram
A Timing diagram defines the behavior of different objects within a time scale. It provides a visual representation of objects changing state and interacting over time. You can use it to:
- Define hardware-driven or embedded software components; for example, those used in a fuel injection system or a microwave controller
- Specify time-driven business processes
You generate Timing diagram elements and connectors from the 'Timing' pages of the Diagram Toolbox.

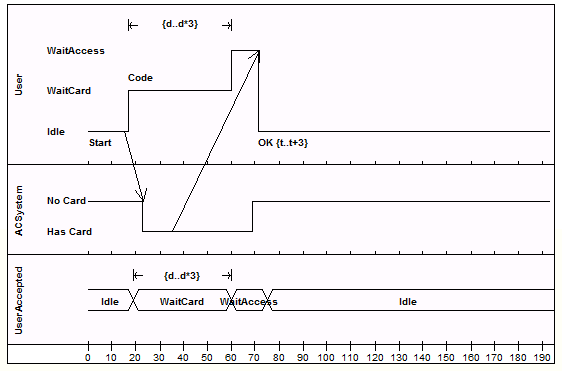

Example Diagram
Timing Diagram Element Toolbox Icons
Icon |
Description |
See also |
---|---|---|
A State Lifeline element represents the state of an object across a measure of time, using changes in y-axis to represent discrete transitions between states. |
State Lifeline | |
A Value Lifeline element represents the state of an object across a measure of time, using parallel lines indicating a steady state, along the x-axis. |
Value Lifeline | |
A Message Label is an alternative way of denoting Messages between Lifelines, which is useful for 'uncluttering' Timing diagrams strewn with messages. |
Message Label | |
A Message Endpoint element indicates that a Message:
|
Message Endpoint | |
A Diagram Gate element indicates that a Message:
The defined point that the Diagram Gate is anchored to is the border of an Interaction Fragment, indicating that the Message issues from or delivers to that Fragment. |
Diagram Gate |
Timing Diagram Connector Toolbox Icon
Icon |
Description |
See also |
---|---|---|
Messages indicate a flow of information or transition of control between elements. |
Message |
