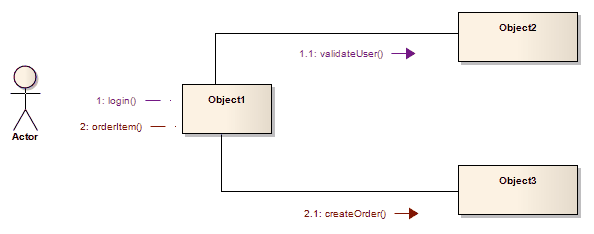

Create a Communication Message
Create a Communication Message
Step |
Action |
|---|---|
|
1 |
Open a diagram (one of: Communication, Analysis, Interaction Overview, Object, Activity or StateMachine). |
|
2 |
Add the required objects. |
|
3 |
Add an Association relationship between each pair of objects that communicate. |
|
4 |
Right-click on an Association to display the context menu. |
|
5 |
Select the option to add a Message from one object to the other. |
|
6 |
When the 'Message Properties' dialog displays, type in a name and any other required details. |
|
7 |
Click on the . The Message is added, connected to the Association and Object instances. |
|
8 |
Move the Message to the required position. |
