BPSim - Execute Page
After defining the configuration, you can choose to conduct a Standard simulation or a Customized simulation. The execution will generate a result report and a list of records used to replay (step through) the simulation.
Access
|
Ribbon |
Simulate > Process Analysis > BPSIM > Open BPSIM Manager > Execute page |
Toolbar Options
Option |
Description |
See also |
|---|---|---|
|
Click on this button to execute the BPMN model with the BPSim configuration and generate a standard report. |
|
|
Click on this button to execute the BPMN model with the BPSim configuration and generate a customized report based on the 'Result Request' settings made on the 'Configure' page. |
|
|
Click on this button to stop the execution and exit the simulation. |
|
|
Click on this button open the generated report in the 'Review' page. |
Execution
When you click on the or , the BPMN model with BPSim Configuration will be exported and loaded into the Execution engine.
During the simulation:
- The token status list will flash with runtime values
- The diagram will flash with runtime token counts
However, the simulation might execute too quickly to be able to see this. You can see these changes if you use the 'Step' page to run through the simulation step by step.

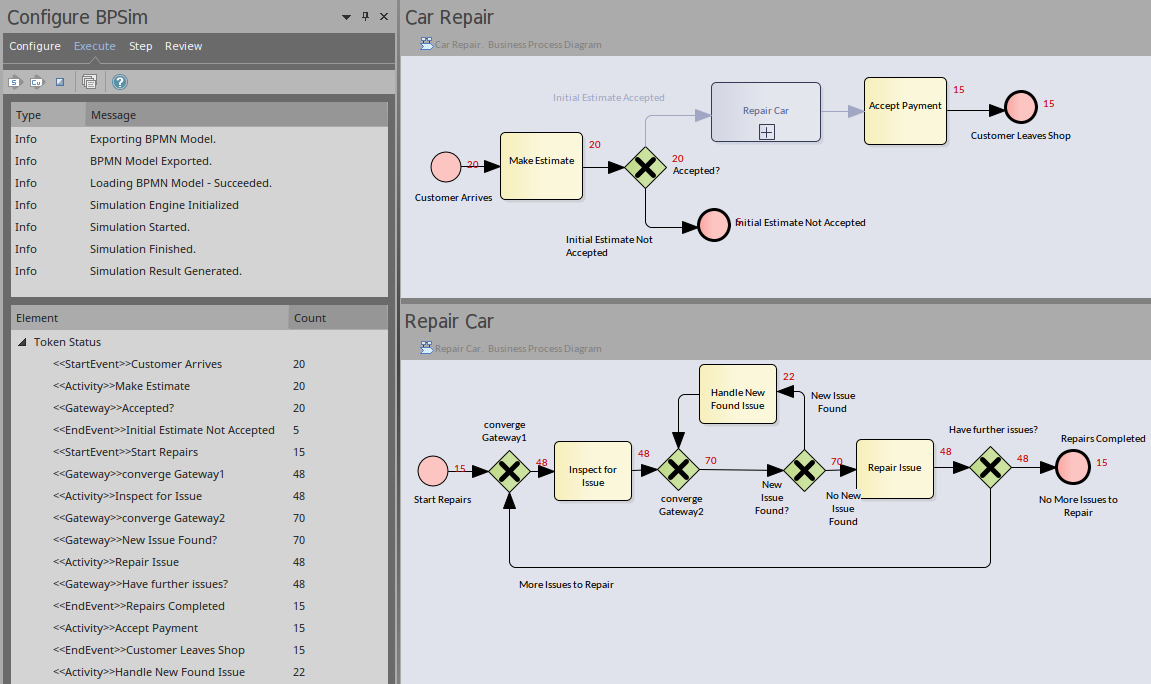

In this example, BPMN elements under the process 'Car Repair' and sub-process 'Repair Car' get triggered as new customers arrive at regular intervals.
