This section provides an overview of the main components of the Automation Interface.
Main Packages of Automation Interface
Represents the model as a whole and provides entry to model Packages and collections.
Identifies the basic structural units (such as Class, Use Case and Object).
Element Features Package
Identifies the attributes and operations defined on an element.
|Element Features Package
Describes the visible drawings contained in the model.
Defines the relationships between elements.
Packages and Contents

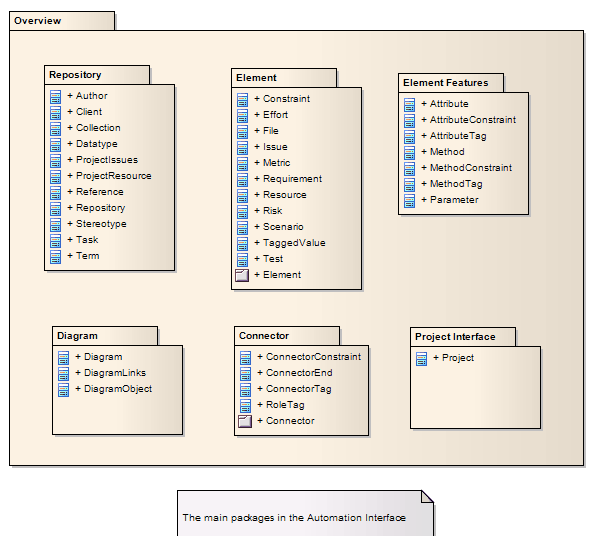

This diagram illustrates the main interface Packages and their associated contents. Each UML element in this User Guide can be created by Automation and can be accessed either through the various collections that exist or, in some cases, directly.
The Repository Class is the starting point for all use of the Automation Interface. It contains the high level system objects and entry point into the model itself using the Models collection and the other system-level collections.
