Profiler Operation

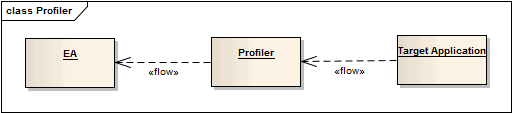

Profiling is most usually controlled through the Profiler toolbar but similar options can be found easily in the Profile drop-down menu, on the Execute ribbon. Profiling is a two stage process of data collection and reporting. In Enterprise Architect the data collection has the advantage of being a background task - so you are free to do other things while at the same time monitoring the profile and seeing how many samples have been captured. The information sent back to Enterprise Architect is stored until you generate a report. To view a report, the capture must be turned off. After the report is produced you can resume capture with the click of a button. If for some reason, you wish to scrap your data and start again, you can do so easily and without having to stop and start the program again.

Access

Ribbon

Code > Analyzer > Profile

Execute > Analyze > Profiler > Open Profiler

Other

Execution Analyzer toolbar : Analyzer Windows | Profiler

Actions

Action	Detail	See also
Start the Profiler	Click the Run button on the Profiler window
Stop the Profiler	The process exits if: You click on the Stop button The target application terminates, or You close the current model If you stop the Profiler and the process is still running, you can quickly attach to it again.
Pause and Resume Capture	You can pause and resume sample collection at any time during a session. When capture is turned on, samples are collected from the target. When paused, the profiler enters and remains idle. No samples are taken and nothing is transmitted. In short, the target is not interrupted.	Getting Started
Generate Reports	The Report button is enabled whenever samples are collected and 1) capture is paused, 2) the Profiler process is stopped or 3) the Application ends.	Function Line Reports Generate, Save and Load Profile Reports
Clear Data Collection	You can clear any data samples collected and resume at any time. First suspend capture by clicking the Pause button. The Discard button, as for the Report button, is enabled whenever capture is turned off. In clicking the Discard button you will be asked to confirm the operation. This action cannot be undone.
