Co-Region Notation

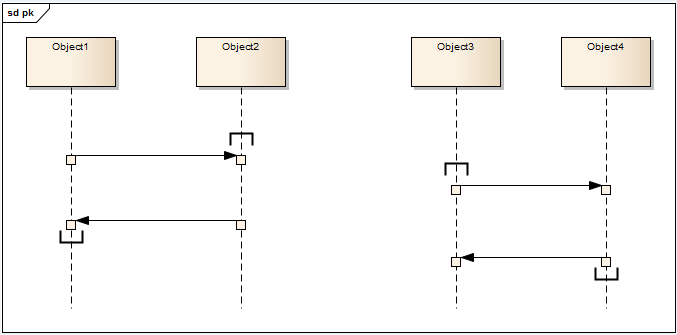

Co-Region notation can be used as a short hand for parallel combined fragments. You can add this notation to a Sequence diagram using the 'Co-Region' submenu, which you display by right-clicking on a connector in a Sequence diagram and selecting the 'Co-Region' option. There are four sub-options available:

• Start at head
• End at head
• Start at tail
• End at tail
