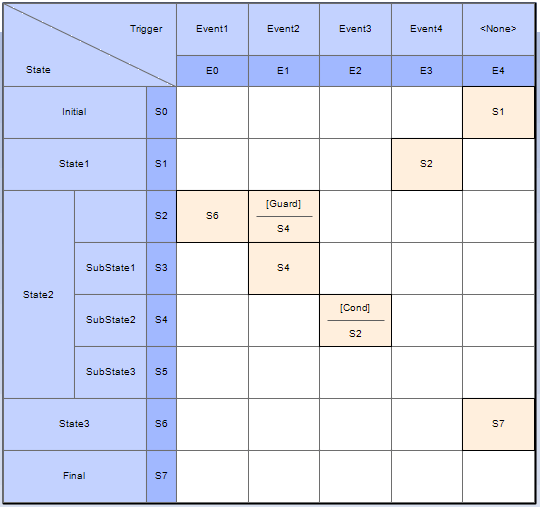

Example State-Trigger Table
The rows indicate the current states and the columns indicate trigger events (or the other way around if you prefer, in a Trigger - State format).
The cell at the intersection of a row and column identifies the target state in the transition if the trigger occurs, and the condition (or guard) of the transition.
