Example SPEM Diagram

You can model the development processes underpinning software and business process modeling using SPEM diagrams, and the wide range of specialized elements and connectors provided in the SPEM Toolbox.

Access

Ribbon

Design > Diagram > New > Type : Select From = 'SPEM', Diagram Types = 'SPEM Diagram'

Context Menu

Project Browser | Right-click on Package | Add Diagram | Type : Select From = 'SPEM', Diagram Types = 'SPEM Diagram'

Keyboard Shortcuts

Other

Project Browser caption bar menu | New Diagram | Type : Select From = 'SPEM', Diagram Types = 'SPEM Diagram'

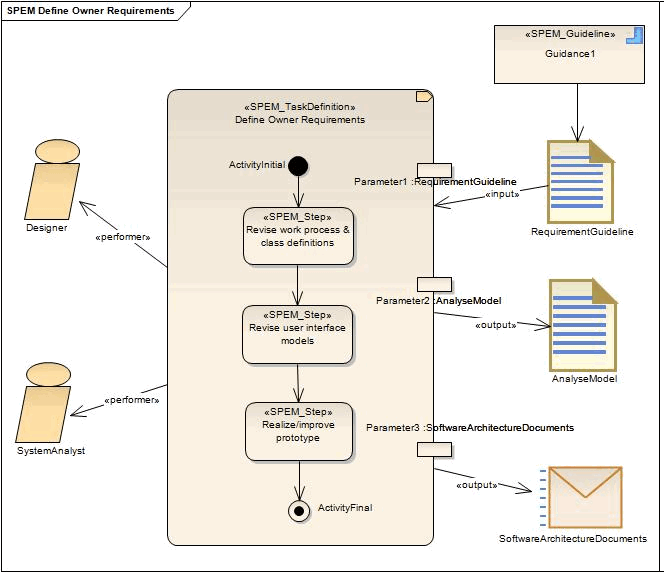

Example Diagram

SPEM Element appearance

Every SPEM stereotype can be presented in one of two ways:

  • Iconic presentation, where the shape is the object's icon (as shown for Designer, which has the Role Definition icon shape), or
  • Textual presentation, where the shape is a rectangular outline with the object's icon as a decoration in the top right corner (as shown for SPEM_TaskDefinition)

To set the presentation format for an element, use the iconstyle Tagged Value. To use:

  • Iconic presentation, set the iconstyle Tagged Value to True
  • Textual presentation, set the Tagged Value to False
