SysML Internal Block Toolbox

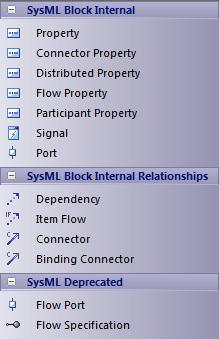

When you are constructing SysML models, you can populate the Internal Block diagrams using the icons on the 'SysML Block Internal' pages of the Diagram Toolbox.
The Block that owns the Internal Block diagram is automatically represented by a diagram frame enclosing the Internal Block diagram elements. You can:
- Hide the frame by right-clicking on the diagram and selecting the 'Hide Diagram Frame' option (and show it again by selecting the 'Show Diagram Frame' option); if the diagram frame is shown, the 'Diagram Frame' settings on the 'Start > Workspace > Preferences > Diagram' page will be ignored
- Make the frame selectable to move or resize it, by right-clicking on it and selecting the 'Selectable' option
- Create Ports and Parts on the frame and create connectors between them
- Generate Property elements on the diagram inside the Block frame, based on the Associations that the Block element has on the Block diagram
Access
On the Diagram Toolbox, click on the More tools button and select 'SysML 1.3 | SysML 1.3 Internal Block'.
Ribbon |
Design > Diagram > Toolbox |
Keyboard Shortcuts |
|
SysML Block Internal
Item |
Description |
See also |
---|---|---|
Property |
Describes the decomposition of a SysML Block in the context of its whole using instances of reusable SysML Blocks. |
|
Connector Property |
Creates an instance of an Association Block. |
|
Distributed Property |
Creates a stereotype of Property, to apply a probability distribution to the values of the property. |
|
Flow Property |
Creates a single kind of Flow element that can flow to or from a block. |
|
Participant Property |
Creates the end of a connector owned by an Association Block. |
|
Signal |
Defines a SysML message, containing attributes, exchanged between system Blocks in an interaction. |
|
Port |
Describes a structural interaction point of a SysML Block which, in turn, connects between interacting parts of a block. |
SysML Block Internal Relationships
Item |
Description |
See also |
---|---|---|
Dependency |
Establishes a traceable relationship describing how one element is dependant upon another. |
|
Item Flow |
Specifies the items that flow across a connector in an interaction point. Used in the same way as UML Information Flows. |
Using Information Flows |
Connector |
Establishes Communication links between parts. |
Connector |
Binding Connector |
Establishes a connection between two parts in a system decomposition. |
SysML Deprecated
Item |
Description |
See also |
---|---|---|
Flow Port |
Describes what flows in and out of interacting SysML Blocks. |
|
Flow Specification |
Defines a set of flow properties that correspond to individual pieces of a common interaction point. |
