Cloud Services Configuration Client
At any point after installation you can connect to the Cloud Service using the Cloud Services Configuration Client (SSCloudServicesClient.exe).
By default this is accessible from: '...\Program Files (x86)\Sparx Systems\Cloud Services\Client'.
The Cloud Services Configuration Client can be used from any machine on your local network; however, communications between it and the Cloud Service are not secure, so it should not be used from outside a secure network.
The Cloud Services Configuration Client is used to configure various settings related to the Cloud service and the repositories it connects to. When the application first starts, a prompt displays to log into a Cloud service (see Logon screen for more details). Once you have logged in, the 'Sparx Systems Cloud Services Configuration Client' dialog displays.

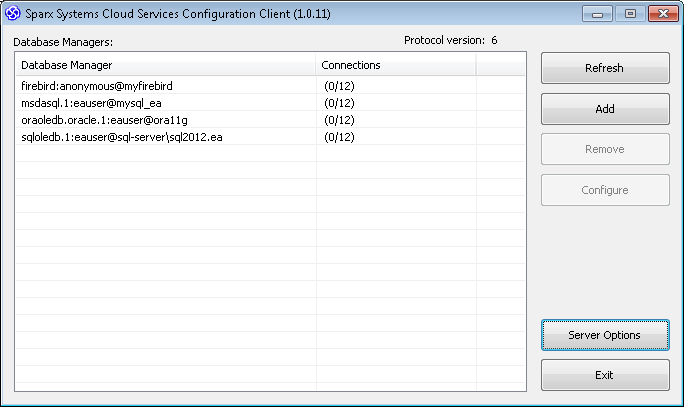

The Cloud Services Configuration Client dialog
This dialog shows a list of all defined repositories for the Cloud Server and, for each one, the number of active user connections and the total number of connections possible. It is also the entry point for all management functions; that is, new repositories can be created, existing ones edited and old ones removed.
Sparx Systems Cloud Services support connections to these DBMS products:
- Firebird
- Microsoft SQL Server
- MySQL
- Oracle
- PostgreSQL
Item |
Description |
See also |
|---|---|---|
|
Database Managers |
This panel lists the defined repositories. Each row contains two columns of information - the database connection string of the repository and the number of active and available connections. |
|
|
Refresh |
Click on this button to reload the contents of the 'Database Managers' list. |
|
|
Add |
Click on this button to display the dialog on which you define a new database. |
Add Database Manager |
|
Remove |
Click on this button to permanently delete the selected database from the Cloud Server. |
|
|
Configure |
Click on this button to display the dialog on which you change the settings for the currently selected database. |
Configure Database Manager |
|
Server Options |
Click on this button to display the dialog on which you change the Cloud Server global options. |
Global Server Options |
