BPSim - Execute Page
After the configuration, you can choose a Standard simulation or a Customized simulation. The execution will generate a result report and a list of records used to replay (step through) the simulation.
Access
Ribbon |
Simulate > Process Analysis > BPSIM > Open BPSIM Manager > Execute page |
Toolbar Options
Option |
Description |
See also |
---|---|---|
![]() |
Click on this button to execute the BPMN file with the BPSim configuration and generate a standard report. |
|
![]() |
Click on this button to execute the BPMN file with the BPSim configuration and generate a customized report based on the 'Result Request' settings. |
|
![]() |
Click on this button to stop the execution and exit the simulation mode. |
|
![]() |
Click on this button open the generated report in the 'Review' page. |
Execution
When you click on the Standard / Customized
, the BPMN model with BPSim Configuration will be exported and loaded into the Execution engine.
- The token status list will flash with runtime values
- The diagram will flash with runtime token counts

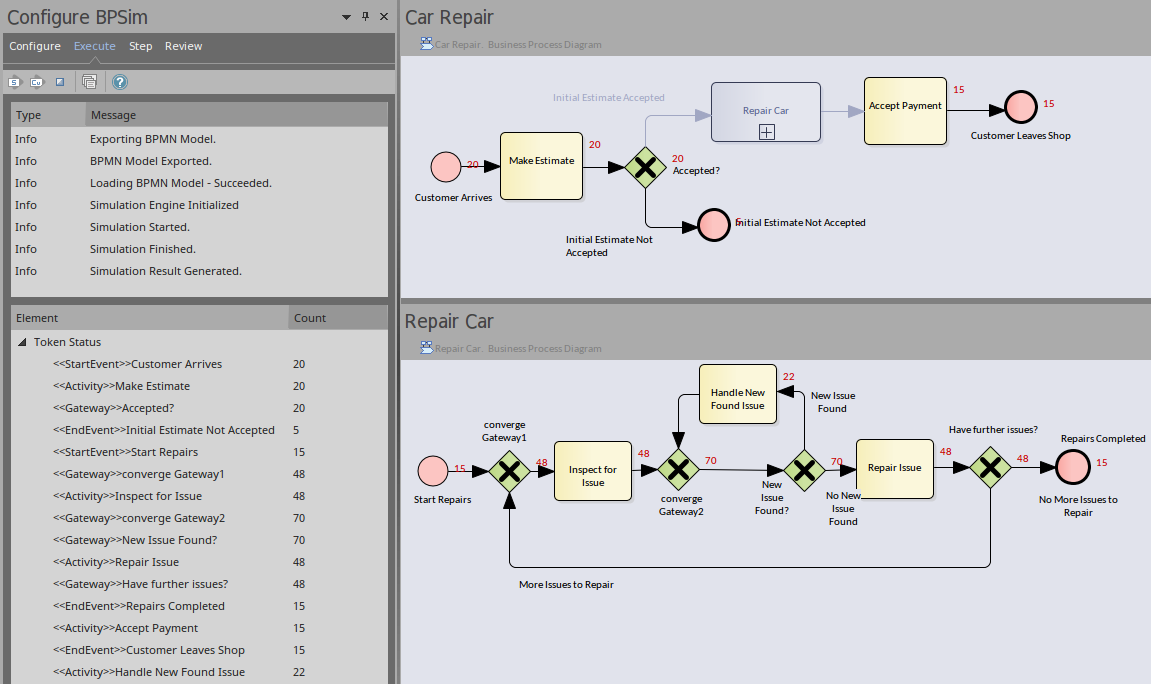

In this example, BPMN elements under the Process 'Car Repair' and sub-process 'Repair Car' get triggered as new customers arrive at regular intervals.
