Inline Sequence Elements

On a Sequence diagram it is possible to represent existing child Part and Port elements, which render as inline sequence elements under their parent Class sequence element.

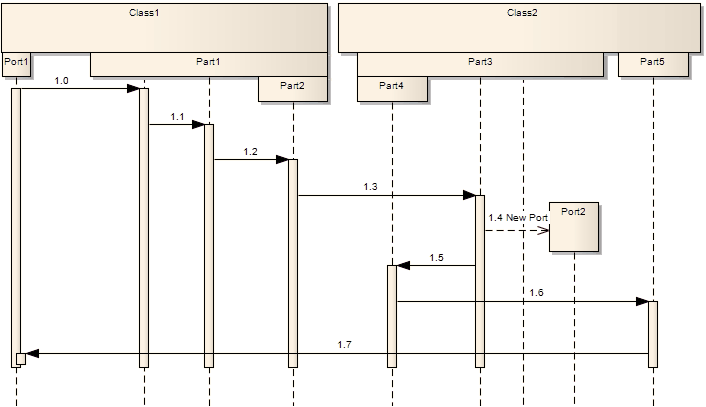

Example Sequence Diagram with Parts and Ports

Inline Sequence Elements example in a Sparx Systems Enterprise Architect Sequence diagram.

Learn more

Represent Part and Port elements on a Sequence diagram




Right-click on the Sequence elements containing the child Ports or Parts, and select 'Features | Interaction Points'.

The Features window displays at the 'Interaction Points' tab.


Select the checkbox against each Part or Port to show, and click on the Close button.
