Color Code External Requirements

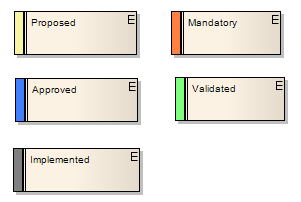

External requirements can be color coded on a diagram, to provide quick visual cues indicating the status of a requirement. The color code requirements use these default conventions:
- Yellow for 'Proposed'
- Blue for 'Approved'
- Green for 'Validated'
- Orange for 'Mandatory'
- Black for 'Implemented'
You can change these colors, and add or remove status types, using the 'Status Types' dialog.
Access
Ribbon |
Start > Workspace > Preferences > Preferences > Objects > Show status colors on diagrams |
Enable color coded external requirements
Step |
Action |
---|---|
1 |
Select the 'Show status colors on diagrams' checkbox to enable the status of external requirements to be represented by color coding. |
