Toolbox Appearance Options

You can modify the appearance of the Diagram Toolbox pages in several ways, through the Toolbox context menu.

Access

Other

Right-click on a Toolbox page background

Options

Option	Detail	See also
Hide or Show element or relationship labels	Select the 'Hide Labels' (or 'Show Labels') context menu option. The icons in the page then 'wrap' within the page, without text labels. When you hide the labels, you can display the label of an individual element or relationship by moving the cursor over the icon.

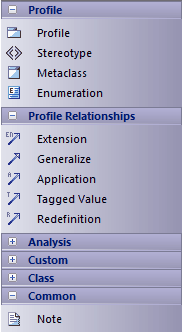

Pinning pages to display all the time	Select the 'Pin in Toolbox' context menu option (not available on the 'Common' page, which displays all the time anyway). For example, if you 'pinned' the 'Class elements' page, and switched to the 'Communication' pages, the Toolbox would include a collapsed 'Class elements' page below the 'Communication' pages. You can also pin a 'SysML Common' page to the Toolbox, simply by making the SysML 1.3 Technology the Active technology for your work login.	SysML Model Elements Toolbox
Unpinning pages	To unpin the page so that it displays only in its own Toolbox group, select the 'Unpin from Toolbox' context menu option.
Collapsing pages	To collapse a page to just show the heading (<type> elements, <type> Relationships or Common), click on the 'minus' box at the left of the page heading; alternatively, right-click on the page and select the 'Collapse the current branch' option. To expand the page again, click on the heading.

Tailor Toolbox to list all required pages at once

Step	Instruction	See also
1	Click on the 'Set Toolbox Visibility' context menu option. The 'Pinned Toolbox Pages' dialog displays.
2	By default, the dialog lists the element pages only, in the order: UML pages, Extended pages, MDG Technology pages. To include the corresponding relationship pages, select the 'Show Relationship Pages' checkbox at the bottom of the dialog.
3	For each page to display on the Toolbox, select the 'Pinned' checkbox. Deselect the checkbox if you no longer require a page to be displayed.
4	When you have defined the list of pages to display, click on the OK button. The pages you have selected are pinned to the Toolbox in a collapsed state, underneath the current diagram-type pages.
5	To expand a page, click on the heading. To remove an individual page, expand it, right-click on it, and select the 'Unpin from Toolbox' option.

Notes

On a Toolbox page for an MDG Technology or UML Profile, if you right-click directly on a Profile element an additional option - 'Synchronize Stereotype' - is available at the end of the context menu; this enables you to synchronize the Tagged Values and constraints for all elements created from the selected Profile element
MDG Technologies can impose their own Toolbox page visibility; for example, if ICONIX is the active technology, all six ICONIX pages are automatically exposed in the Toolbox
If the active Technology pages duplicate UML or Extended pages (as the ICONIX pages do), the pinned Technology pages override and replace the pinned UML and Extended pages; for example, if ICONIX is active and you have pinned the 'Extended | Analysis' page, the 'Analysis' page in the list is the ICONIX-defined page, not the 'Extended | Analysis' page
